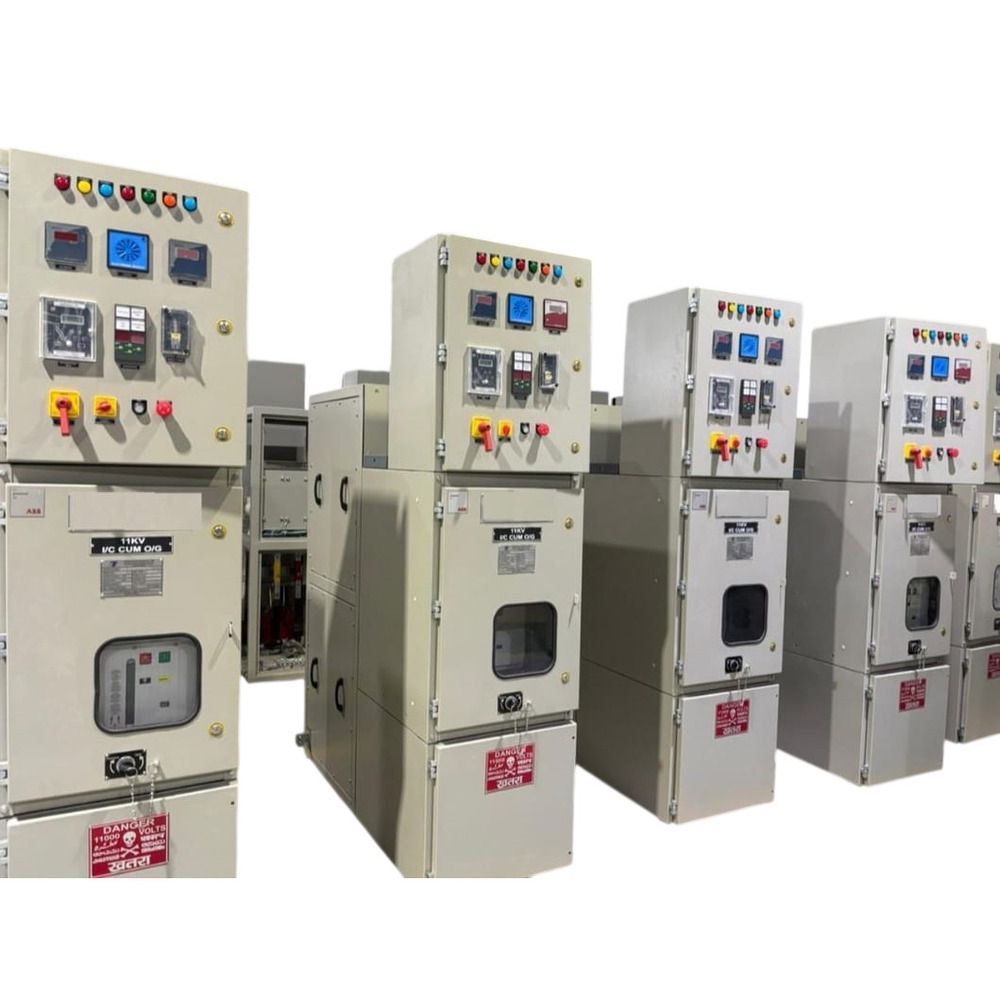

11kV ABB Industrial Vacuum Circuit Breaker

Get a Price/Quote

Product Details:

Thickness 2.5 mm (Panel)
Cooling System Natural Air
Connectivity Type Busbar/Terminal
Rated Operation Voltage 12kV
Control System Spring/Electromagnetic
Components Vacuum Interrupter, Control Circuit, CT/PT, Shunt Release
Base Material Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

11kV ABB Industrial Vacuum Circuit Breaker Price And Quantity

Minimum Order Quantity 1 Piece

Control Voltage 110V/220V AC/DC
Ambient Temperature Range -10C to +55C
Altitude Up to 1000 m above sea level
Mechanical Endurance 10,000 Operations
Fuse Protection Provided for Control Circuit
Humidity Up to 95% Non-Condensing
Interlocking System Mechanical & Electrical
Auxiliary Contacts 8 NO + 8 NC
Rated Short Circuit Breaking Current 25kA for 3 sec
Operating Mechanism Spring Stored Energy
Installation Type Fixed/Draw Out Type

11kV ABB Industrial Vacuum Circuit Breaker Product Specifications

Features Maintenance Free, Compact Design, Arc Resistant
Surface Finish Powder Coated
Material High-strength epoxy resin, Copper Contacts
Current Rating 1250A
Way 3 Phase
Rated Current 1250A
Cover Material Epoxy Resin
Rated Insulation Voltage 28kV
Cabinet Material CRCA Steel
Dimension (L*W*H) 800mm x 900mm x 2200mm
Operating Voltage 11kV AC
Surface Color Light Grey
Protection Level Medium Voltage
Thickness 2.5 mm (Panel)
Standard IEC 62271-100, IS 13118
Connectivity Type Busbar/Terminal
Rated Operation Voltage 12kV
Cooling System Natural Air
Application Industrial Power Distribution
Display Type Mechanical On/Off Indicator
Components Vacuum Interrupter, Control Circuit, CT/PT, Shunt Release
Base Material Steel
IP Rating IP4X
Rated Voltage 11kV
Control System Spring/Electromagnetic
Product Type Vacuum Circuit Breaker
Frequency (MHz) 50 Hz
Panel Type Indoor/Outdoor
Protection Class Class II
Maximum Output Current 1250A

Control Voltage 110V/220V AC/DC
Ambient Temperature Range -10C to +55C
Altitude Up to 1000 m above sea level
Mechanical Endurance 10,000 Operations
Fuse Protection Provided for Control Circuit
Humidity Up to 95% Non-Condensing
Interlocking System Mechanical & Electrical
Auxiliary Contacts 8 NO + 8 NC
Rated Short Circuit Breaking Current 25kA for 3 sec
Operating Mechanism Spring Stored Energy
Installation Type Fixed/Draw Out Type

11kV ABB Industrial Vacuum Circuit Breaker Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'VCB Panel' category

ABB 33 KV Outdoor Vacuum Circuit Breaker Price : 195000 INR/Piece Minimum Order Quantity : 1 Rated Operation Voltage : 33 kV Connectivity Type : Terminal Connectors Cooling System : Natural Air Cooled Thickness : 6 mm (Cabinet) Standard : IEC 62271100 Maximum Output Current : 1250 A Frequency (MHz) : 50 Hz Panel Type : Outdoor Product Type : Other, Outdoor Vacuum Circuit Breaker Protection Class : Class H Base Material : Galvanized Steel IP Rating : Other, IP55 Application : Power Distribution Components : Vacuum Interrupter, CT, PT Control System : Electromechanical Rated Voltage : 33 kV Rated Current : 1250 A Cover Material : Other, Epoxy Resin Material : Other, Epoxy Resin & Metal Features : Outdoor, Arc Quenching, Maintenance Free Surface Finish : Other, Weatherproof Coated Way : Triple Pole Current Rating : 1250 A Operating Voltage : 33 kV Protection Level : IP55 Surface Color : White Cabinet Material : Galvanized Steel Dimension (L*W*H) : 1850 x 850 x 2300 mm Rated Insulation Voltage : 38 kV Display Type : Other, Analog Position Indicator

Send Inquiry

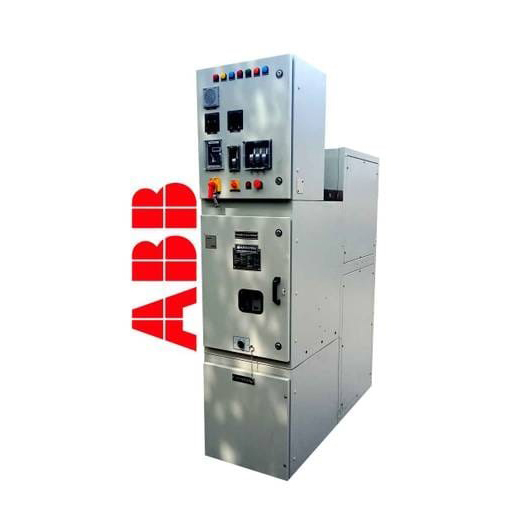

ABB 11kV Vacuum Circuit Breaker Panel Price : 295000 INR/Piece Minimum Order Quantity : 1 Rated Operation Voltage : 11 kV Connectivity Type : Hardwired Cooling System : Natural Air Cooling Thickness : 2 mm Standard : IEC 62271200 Maximum Output Current : 1000A Frequency (MHz) : 50/60 Hz Panel Type : Indoor Product Type : Other, Vacuum Circuit Breaker Panel Protection Class : Class I Base Material : Other, Mild Steel base IP Rating : Other, IP4X Application : Industrial/Power Utility Components : VCB, CT, PT, Busbar Control System : Semi Automatic Rated Voltage : 11 kV Rated Current : 1000A Cover Material : Stainless Steel Material : Other, Stainless Steel (SS) Features : Arc Proof, Interlocked, Maintenance Free Surface Finish : Powder Coated Way : 3Way Current Rating : 1000A Operating Voltage : 11 kV Protection Level : Other, High Surface Color : Other, Light Grey Cabinet Material : Stainless Steel Dimension (L*W*H) : 2200x800x1600 mm Rated Insulation Voltage : 12 kV Display Type : Other, Analog meters

Send Inquiry

VD4 Medium Voltage Vacuum Circuit Breaker Price : 35000 INR/Piece Minimum Order Quantity : 1 Rated Operation Voltage : 33 kV Connectivity Type : Terminal Block Cooling System : Air Cooled Thickness : 3 mm (panel) Standard : IEC 62271100 Maximum Output Current : 2500 A Frequency (MHz) : 50 Hz Panel Type : Indoor Product Type : Other, Vacuum Circuit Breaker Protection Class : Class I Base Material : Other, Mild Steel Sheet IP Rating : Other, IP4X Application : Medium Voltage Power Distribution Components : Vacuum Interrupter, CT, PT, Control Wiring Control System : Manual/Automatic Rated Voltage : 33 kV Rated Current : 2500 A Cover Material : Mild Steel Material : Mild Steel Features : High Breaking Capacity, Compact Design, Maintenance Free Surface Finish : Powder Coated Way : 3 Way Current Rating : 2500 A Operating Voltage : 33 kV Protection Level : Other, High Voltage Surface Color : Other, Grey Cabinet Material : Powder Coated Steel Dimension (L*W*H) : 750 x 1200 x 2300 mm Rated Insulation Voltage : 38 kV Display Type : Other, Analog Meter

Send Inquiry

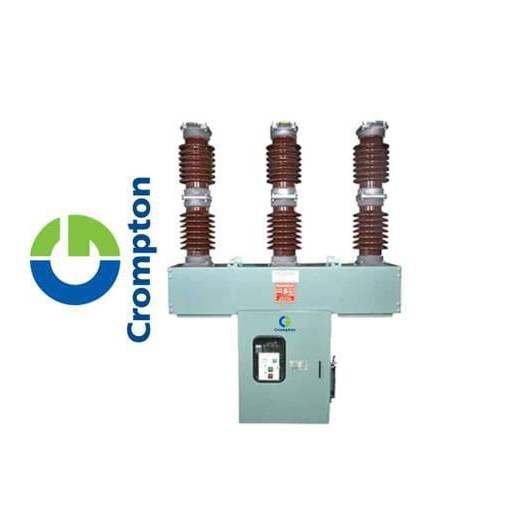

Crompton Greaves Outdoor Vacuum Circuit Breaker Minimum Order Quantity : 1 Rated Operation Voltage : 12 kV Connectivity Type : Hardwired/Terminal Connections Cooling System : Natural Air Cooled Thickness : 3 mm enclosure Standard : IS/IEC 62271100 Maximum Output Current : 1250 A Frequency (MHz) : 50 Hz Panel Type : Floor Mounted Product Type : Other, Outdoor Vacuum Circuit Breaker Protection Class : Class II Base Material : Other, Steel IP Rating : Other, IP55 Application : Outdoor Electrical Distribution Components : Vacuum Interrupter, CTs, PTs, Relays Control System : ElectroMechanical Rated Voltage : 12 kV Rated Current : 1250 A Cover Material : Other, Epoxy Coated Steel Material : Other, Vacuum Interrupter, Epoxy Resin, Sheet Metal, Copper, SilverPlated Contacts Features : Arc Quenching Vacuum Interrupter, MaintenanceFree, Compact Design Surface Finish : Powder Coated Way : 3 Phase Current Rating : 1250 A Operating Voltage : 12 kV Protection Level : IP55 Surface Color : Other, Grey Cabinet Material : Sheet Steel Dimension (L*W*H) : 1380 mm x 1100 mm x 2200 mm Rated Insulation Voltage : 28 kV (Power Frequency withstand) Display Type : Other, Analog & LED Indicators
