Compact Substation

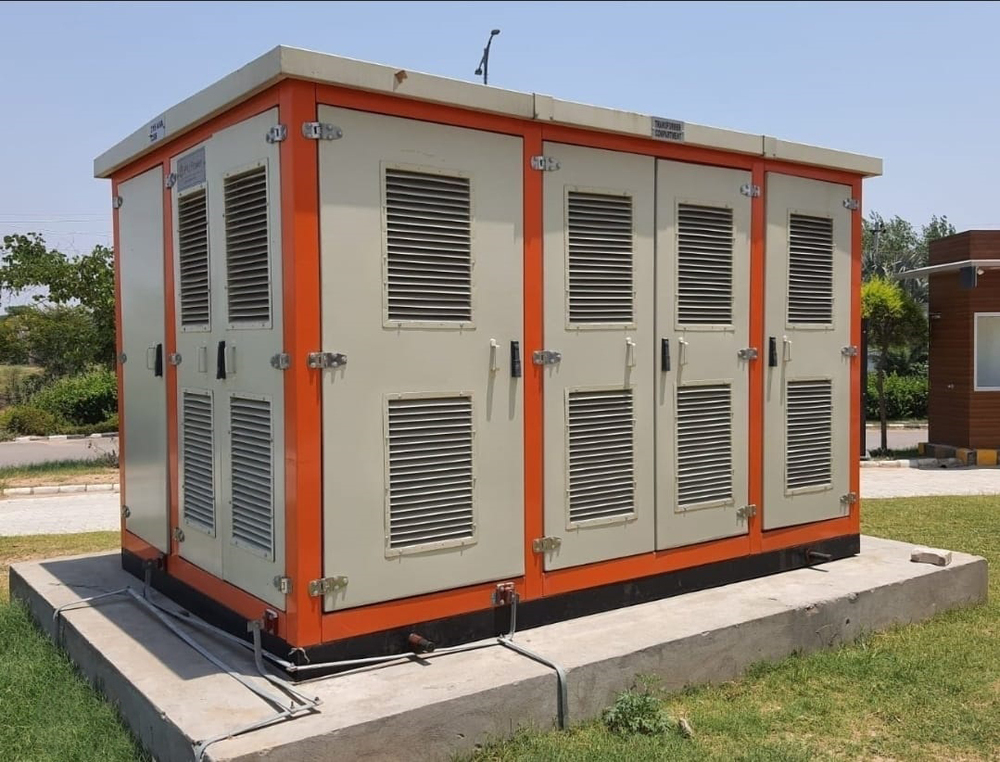

Name: PVJ Power Compact Substation
Brand: H A Electrical And Switchgear
Price: 1900000 INR
Availability: InStock

Price 1900000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Compact Substation Specification

Load Loss
As per IS standard

Rated Voltage
11/0.433 kV Volt (V)

Capacity
100 kVA Kg

Low Voltage
0.433 kV Volt (V)

Standard
IS 14786/IEC 61330

High Voltage
11 kV Volt (V)

Dimension (L*W*H)
2200 x 1600 x 1850 mm Inch (in)

Cooling Type
ONAN (Air Natural)

Operating Temperature
-20C to +50C Celsius (oC)

Coil Material
Other

Voltage Booster Type
Other

Product Type
Other

Material
Copper

Output
433 V

Frequency (MHz)
50 Kilohertz ( KHZ )

Efficiency
High efficiency

Phase
Three Phase

Usage
Outdoor power distribution

Coil Structure
Other

Coil Number
Other

Power Scope
100 kVA

Weight
Approx. 1800 kg Kilograms (kg)

Short Circuit Withstand
31.5 kA

Enclosure
Weatherproof

Transformer Type
Oil-filled/dry

Switchgear
Integrated

Installation
Outdoor floor-mount

Bushing Type
Porcelain

Input
11 kV

Protection
Overcurrent, earth fault

IP Rating
IP55

Secondary Output
433 V

Compact Substation Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, South America, Eastern Europe, Australia, Central America, North America, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Compact Substation

Unveiling the ultimate in outdoor power distribution, the PVJ Power Compact Substation is an acclaimed must-have for modern infrastructure projects across India. Engineered with an IP55 weatherproof enclosure, this paragon of reliability boasts a short circuit withstand of 31.5 kA and a high-efficiency copper coil structure. As an ace in its class, it features oil-filled or dry transformers, integrated switchgear, and advanced protection against earth faults and overcurrent. This offer includes a robust, floor-mount design supporting 11 kV input, 433 V output, and three-phase power, ensuring unmatched performance for your critical applications.

Versatile Power Distribution for Outdoor and Industrial Applications

The PVJ Power Compact Substation excels in both specific and general outdoor power distribution uses. Designed for versatile application areas-such as industrial plants, commercial zones, and large residential communities-this substation delivers reliable step-down voltage service from 11 kV to 433 V. Its robust, floor-mounted design ensures it withstands harsh outdoor environments, making it ideal for high-demand utility and infrastructure projects across varied site conditions.

Packaging, Delivery, and Sample Policy Information

Each PVJ Power Compact Substation is meticulously packaged to secure all internal and external components against transit damage. Units are dispatched through reliable logistics partners ensuring prompt and safe delivery to your specified site. FOB is available at major ports in India. Sample policies cater specifically to bulk requirements, and each order is delivered with full documentation for seamless installation and setup. Transportation logistics are customized for timely and efficient fulfillment.

FAQ's of PVJ Power Compact Substation:

Q: How is the PVJ Power Compact Substation installed on outdoor sites?

A: The PVJ Power Compact Substation is designed for outdoor, floor-mounted installation, making it suitable for direct placement on prepared foundations at industrial, commercial, or utility sites.

Q: What protective features does this substation provide for safe usage?

A: The substation is equipped with integrated switchgear and advanced protection mechanisms, including overcurrent and earth fault detection systems, ensuring operational safety and minimizing downtime.

Q: Where can this power compact substation be effectively used?

A: It is ideal for a range of applications, including industrial complexes, commercial buildings, and large-scale residential developments, thanks to its robust weatherproof design and versatility.

Q: What is the process for ordering and delivery from PVJ?

A: Orders can be placed through PVJ's official channels; each substation is carefully packaged and dispatched via trusted transportation partners, with FOB options at major Indian ports for export.

Q: What are the key benefits of using a copper coil structure in this substation?

A: The use of copper in the coil structure ensures higher efficiency, better thermal performance, and improved electrical conductivity, contributing to reduced losses and sustained operation.
