Automatic Mains Failure Panel

Get a Price/Quote

Product Details:

Panel Type Floor Mount / Wall Mount
Protection Class Class 1
Thickness 1.6 mm - 2.0 mm
Features Auto/Manual Operation, Generator Start/Stop Control, Phase Sequence Monitoring, Under/Over Voltage Protection
Components MCB, MCCB, ACB, Contactors, Relays, Timer, Indicator Lamps
Rated Current Up To 1000 Amps
Protection Level IP54
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Automatic Mains Failure Panel Price And Quantity

Minimum Order Quantity 1 Piece

Cable Entry Top / Bottom Cable Entry Supported
Bus Bar Material Electrolytic Grade Copper
Neutral Link Provided
Operating Mode Automatic Changeover between Mains and Generator
Transformer Type Built-in CT / PT for Metering
Earthing Dual Earthing Provision
Enclosure Type CRCA Sheet Steel Construction
Operating Altitude Up to 2000 meters above sea level
Humidity Up to 95% RH Non-condensing
Compliance Certification CE Marked
Mounting Type Floor Standing / Wall Mounted
Ambient Temperature -10C to +55C

Automatic Mains Failure Panel Product Specifications

Base Material Mild Steel
IP Rating Ip54
Cooling System Natural Air Ventilation
Control System Microprocessor / PLC based
Rated Operation Voltage 415 V AC
Rated Voltage 415 V AC
Operating Voltage 415 V AC
Cover Material Mild Steel with Powder Coating
Application Automatic control between mains and generator
Surface Finish Powder Coated
Material Mild Steel (MS)
Display Type LED / LCD
Connectivity Type Wired
Product Type Automatic Mains Failure Panel (AMF Panel)
Surface Color RAL 7035 (Light Grey)
Cabinet Material Mild Steel
Rated Insulation Voltage 660 V
Way Three Phase
Current Rating 630A / 800A / 1000A
Protection Level IP54
Components MCB, MCCB, ACB, Contactors, Relays, Timer, Indicator Lamps
Features Auto/Manual Operation, Generator Start/Stop Control, Phase Sequence Monitoring, Under/Over Voltage Protection
Maximum Output Current 1000 A
Rated Current Up To 1000 Amps
Thickness 1.6 mm - 2.0 mm
Frequency (MHz) 50/60 Hz
Protection Class Class 1
Standard IS/IEC 60947-6-1
Dimension (L*W*H) Customizable
Panel Type Floor Mount / Wall Mount

Cable Entry Top / Bottom Cable Entry Supported
Bus Bar Material Electrolytic Grade Copper
Neutral Link Provided
Operating Mode Automatic Changeover between Mains and Generator
Transformer Type Built-in CT / PT for Metering
Earthing Dual Earthing Provision
Enclosure Type CRCA Sheet Steel Construction
Operating Altitude Up to 2000 meters above sea level
Humidity Up to 95% RH Non-condensing
Compliance Certification CE Marked
Mounting Type Floor Standing / Wall Mounted
Ambient Temperature -10C to +55C

Automatic Mains Failure Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Electric Control Panel' category

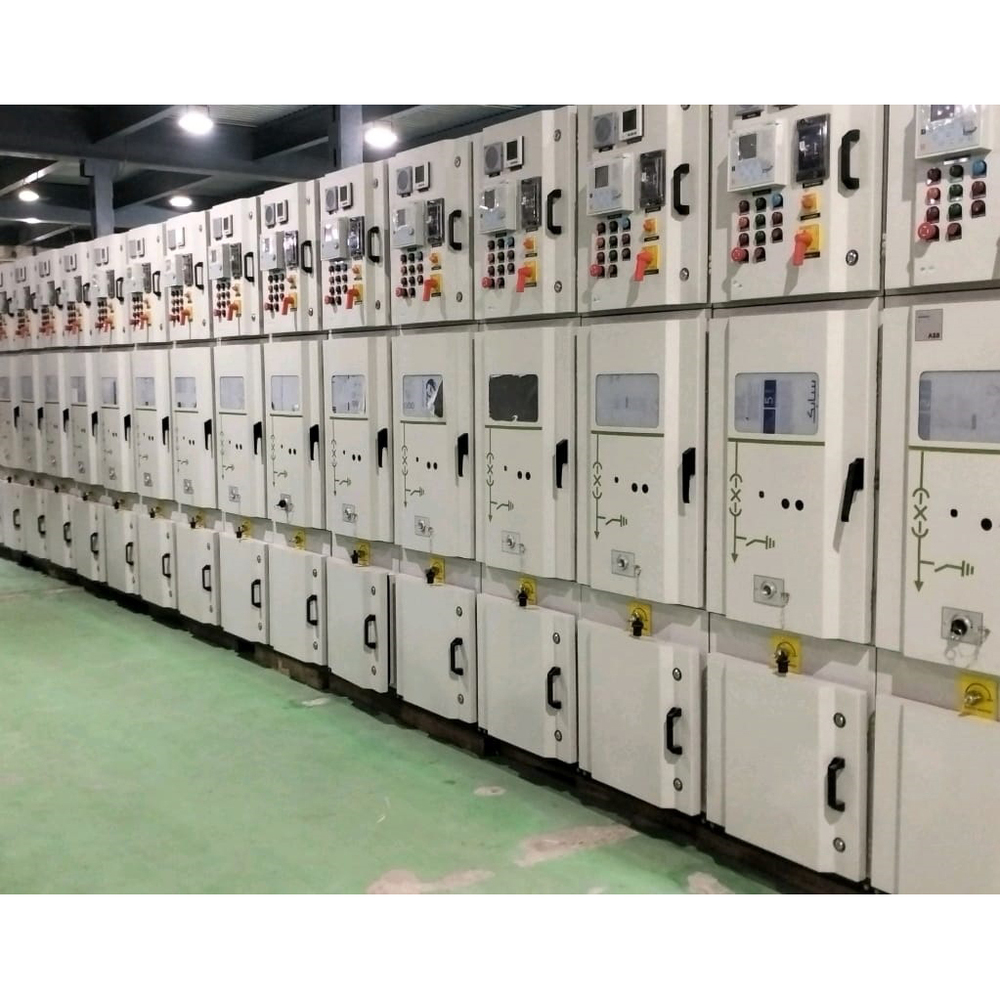

Industrial Electrical Control Panel System Minimum Order Quantity : 1 Cover Material : Mild Steel Connectivity Type : Wired Material : Mild Steel Display Type : Other, LED/Analog Meters Application : Industrial Automation Surface Finish : Powder Coated Rated Voltage : 415 V Operating Voltage : 380415 V Rated Operation Voltage : 415 V IP Rating : Ip54 Base Material : Other, Mild Steel Sheet Control System : Automatic / Manual Cooling System : Natural Air Ventilation Standard : IEC 61439 Protection Class : Class I Thickness : 2 mm Frequency (MHz) : 50 Hz Panel Type : Outdoor & Indoor Dimension (L*W*H) : 2000 x 800 x 600 mm Protection Level : IP54 Rated Current : 400 A Maximum Output Current : 630 A Components : MCB, MCCB, Relays, Contactors, Indicators Features : Robust Design, Easy Installation, Rustproof, Trouble Free Operation Rated Insulation Voltage : 690 V Cabinet Material : Mild Steel Surface Color : Other, Gray Product Type : Other, Industrial Electrical Control Panel Current Rating : 400630 A Way : Multiple Way
