Control Panel Accessories

• Application
• Distribution Automation, Overhead line protection

• Base Material
• Galvanized Steel

• Cabinet Material
• Stainless Steel

• Components
• Vacuum Interrupter, CT/VT, Control relay, Actuator

• Connectivity Type
• RS485, GPRS, 4G, Remote with SCADA

• Control System
• Microprocessor-based Relaying

• Cooling System
• Natural air cooling

• Cover Material
• Other, Epoxy Resin

• Current Rating
• 630A, 1250A

• Dimension (L*W*H)
• 650mm x 650mm x 800mm (approx.)

• Display Type
• Other, LCD, LED indicators

• Features
• Remote operation, Fault detection, Self-diagnosis, Long mechanical lifespan

• Frequency (MHz)
• 50/60Hz

• IP Rating
• Other, IP65

• Material
• Other, Epoxy Resin, Stainless Steel, and Copper Components

• Maximum Output Current
• 1250A

• Operating Voltage
• 12-40.5kV

• Panel Type
• Outdoor Panel

• Product Type
• Other, Vacuum Recloser

• Protection Class
• Class II

• Protection Level
• Other, Outdoor, anti-rust, high environmental adaptability

• Rated Current
• 630A, 1250A

• Rated Insulation Voltage
• 40.5kV

• Rated Operation Voltage
• Up to 40.5kV

• Rated Voltage
• 12kV, 24kV, 36kV

• Standard
• IEC 62271-200, GB1984-2003

• Surface Color
• Other, Grey

• Surface Finish
• Other, Anti-corrosive coating

• Thickness
• Customized (Typically 3-5mm metal housing)

• Way
• Three-phase

• Application
• Medium Voltage Switchgear

• Base Material
• Galvanized Steel

• Cabinet Material
• Sheet Metal

• Components
• Spring Charged Mechanism, Shunt Release, Closing/Tripping Coil

• Connectivity Type
• Terminal Block

• Control System
• Manual and Motorized Operation

• Cooling System
• Air Natural Cooling

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• 800 - 1250 Amps

• Dimension (L*W*H)
• 550 x 320 x 220 mm

• Display Type
• Other, Mechanical Position Indicator

• Features
• High Mechanical Life, Low Maintenance, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, High-grade Steel and Copper Alloys

• Maximum Output Current
• 1250 A

• Operating Voltage
• 220V AC/DC

• Panel Type
• Vacuum Circuit Breaker Panel

• Product Type
• Other, VCB Operating Mechanism

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 800 - 1250 A

• Rated Insulation Voltage
• 28 kV

• Rated Operation Voltage
• 12 kV

• Rated Voltage
• 12 kV

• Standard
• IEC 62271-100

• Surface Color
• Other, Black and Silver Grey

• Surface Finish
• Powder Coated

• Thickness
• 3 mm

• Way
• Three Phase

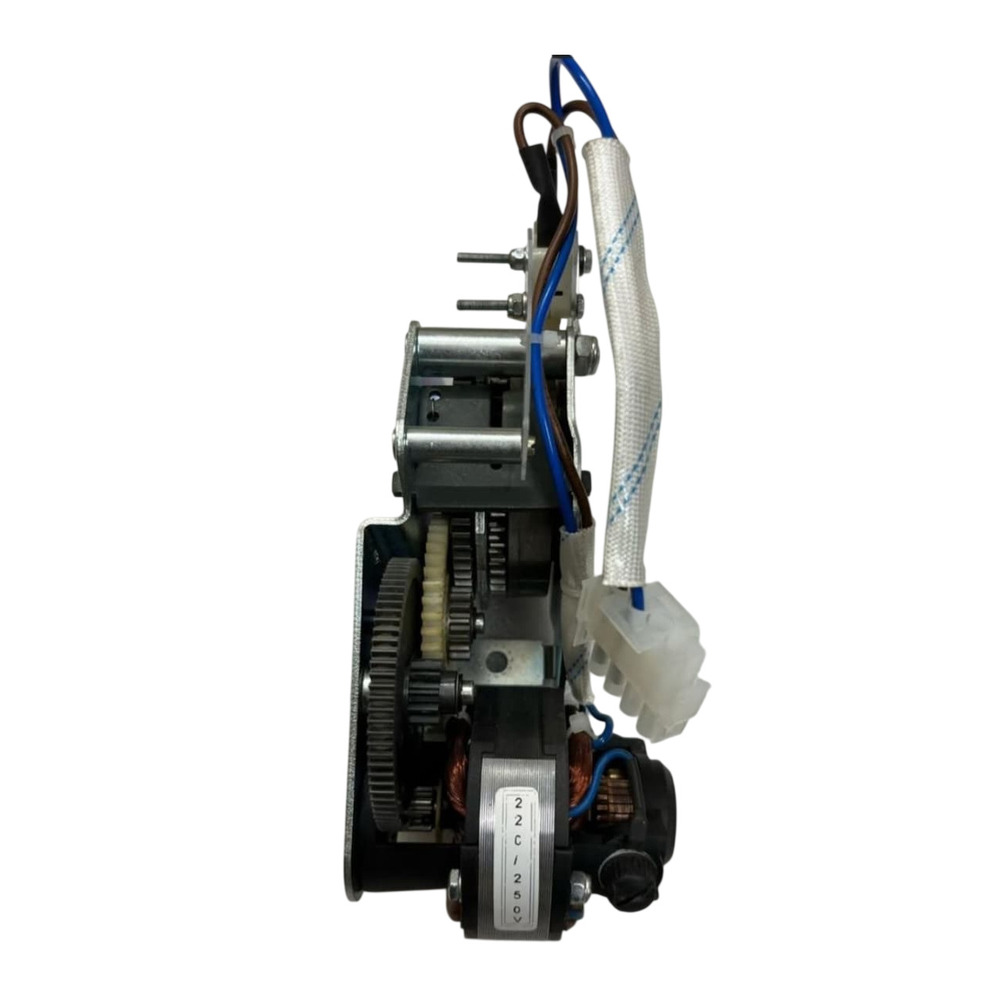

• Application
• MV/LV Breakers, Switchgear Panels

• Base Material
• Other, Steel Sheet

• Cabinet Material
• Powder Coated Steel

• Components
• Motor, Gear, Mounting Accessories

• Connectivity Type
• Wired

• Control System
• Electromechanical

• Cooling System
• Self-ventilated

• Cover Material
• Other, ABS Plastic

• Current Rating
• 3.5 A

• Dimension (L*W*H)
• 215 x 140 x 100 mm

• Features
• High Reliability, Long Life, Easy Installation, Maintenance Free

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip54

• Material
• Other, High-grade ABS and Steel

• Maximum Output Current
• 3.5 A

• Operating Voltage
• AC 220/240 V

• Panel Type
• Modular

• Product Type
• Other, Spring Charging Motor

• Protection Class
• Class I

• Protection Level
• Other, IP 54

• Rated Current
• Up to 3.5A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 220-240 V AC

• Rated Voltage
• 220/240 VAC

• Standard
• IEC 60947-6-1

• Surface Color
• Other, Grey

• Surface Finish
• Other, Matte & Anti-Corrosive Coating

• Thickness
• Standard ABB Specification

• Way
• 3 pole/4 pole Variants

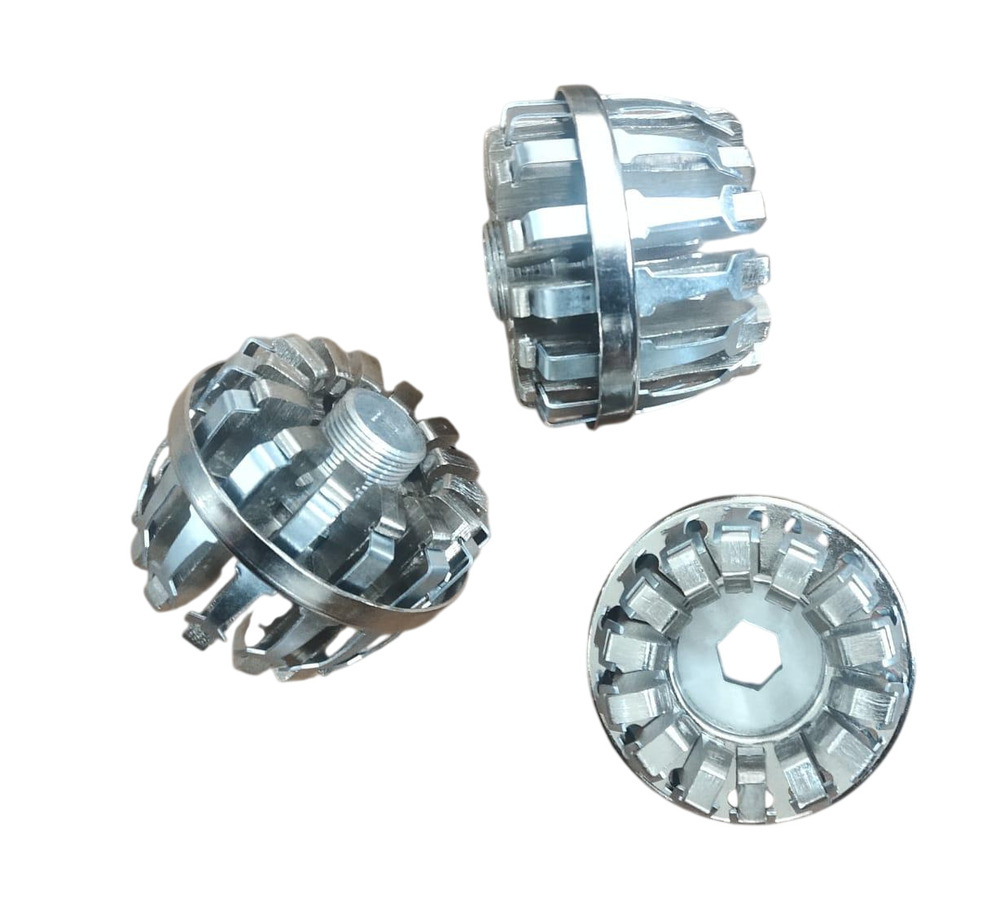

• Application
• Low Voltage Switchgear Systems

• Base Material
• Other, Forged Copper

• Cabinet Material
• Stainless Steel

• Components
• Spring, Contact Fingers, Base Plate

• Connectivity Type
• Busbar Mount

• Control System
• Electromechanical

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Polymide (PA66)

• Current Rating
• 1600 A

• Dimension (L*W*H)
• 112 mm x 45 mm x 38 mm

• Features
• High Durability, Low Contact Resistance, Easy Mounting

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP20

• Material
• Other, Copper Alloy

• Maximum Output Current
• 1600 A

• Operating Voltage
• 1000 V

• Panel Type
• Switchgear Panel

• Product Type
• Other, Tulip Jaw Contact

• Protection Class
• Class I

• Protection Level
• Other, IP20

• Rated Current
• 1600 A

• Rated Insulation Voltage
• 1000 V

• Rated Operation Voltage
• 1000 V

• Rated Voltage
• 1000 V

• Standard
• ABB Standard, IEC Certified

• Surface Color
• Other, Silver

• Surface Finish
• Other, Electroplated

• Thickness
• 8 mm

• Way
• Single

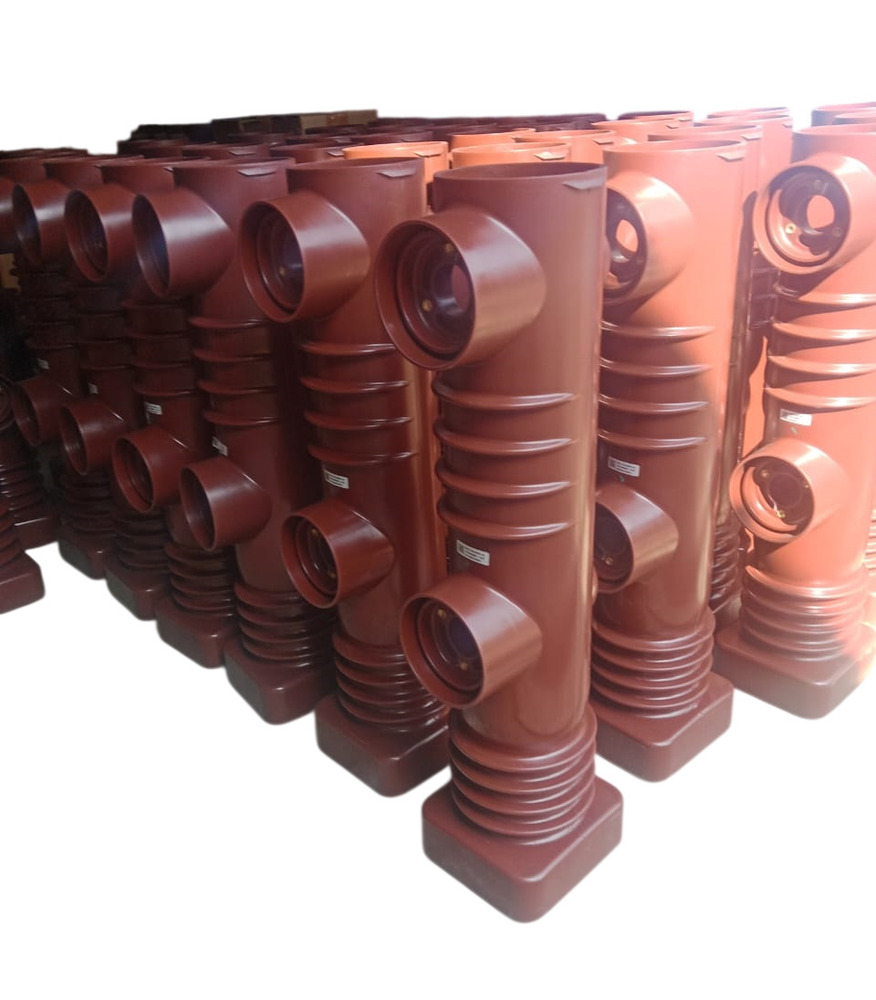

• Application
• Switchgear, Circuit Breaker

• Base Material
• Other, Epoxy Composite

• Components
• Epoxy Pole, Metal Inserts

• Connectivity Type
• Mechanical Fitment

• Control System
• Manual/Electrical Fitment

• Cooling System
• Self-Cooled

• Cover Material
• Other, Insulated Epoxy

• Current Rating
• Up to 1250 A

• Dimension (L*W*H)
• 510 x 350 x 150 mm

• Features
• Moisture Proof, High Dielectric, Corrosion-Resistant

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP 55

• Material
• Other, Epoxy Resin

• Maximum Output Current
• 1250 A

• Operating Voltage
• 33,000 V

• Panel Type
• Medium Voltage

• Product Type
• Other, Epoxy Pole Housing

• Protection Class
• Class I

• Protection Level
• Other, High

• Rated Current
• 1250 A

• Rated Insulation Voltage
• 40 kV

• Rated Operation Voltage
• 33 kV

• Rated Voltage
• 33 kV

• Standard
• IEC/IS Standards

• Surface Color
• Other, Reddish Brown

• Surface Finish
• Other, Glossy

• Thickness
• 8-15 mm

• Way
• 3 Phase

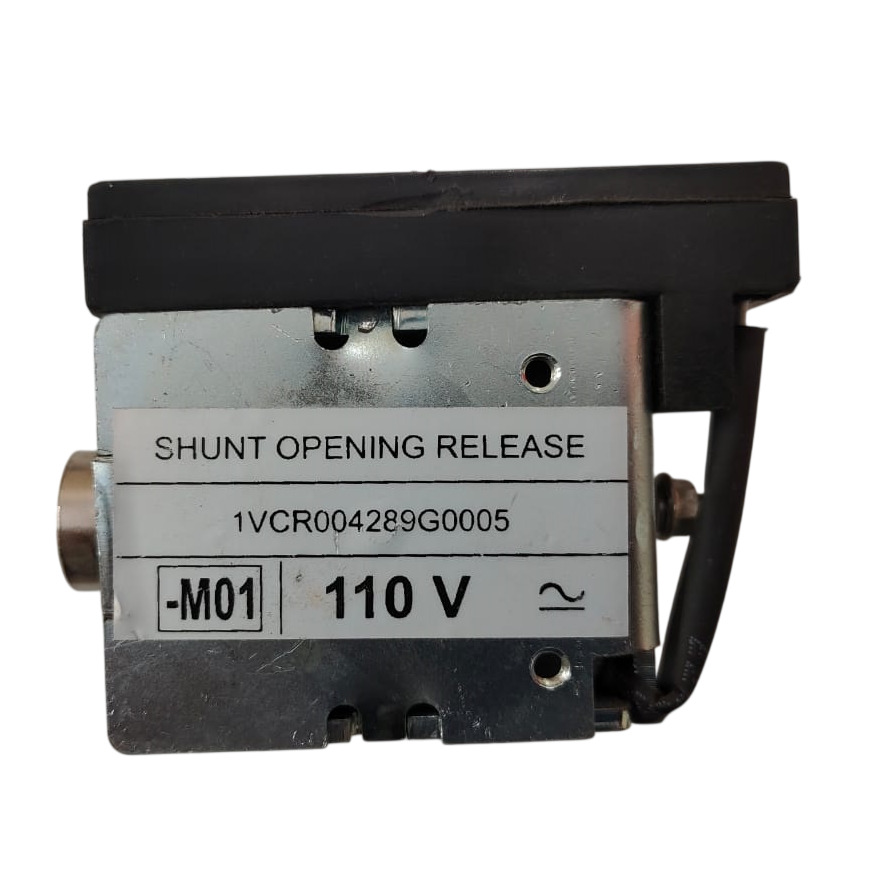

• Application
• Medium voltage vacuum circuit breaker tripping

• Base Material
• Other, Epoxy resin

• Components
• Tripping coil, mounting bracket, connectors

• Connectivity Type
• Terminal connection

• Control System
• Electromagnetic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Polycarbonate / Epoxy

• Current Rating
• 1A

• Dimension (L*W*H)
• As per ABB design; typically compact

• Features
• High reliability, quick response, maintenance-free

• IP Rating
• Other, IP20

• Material
• Other, Copper/Epoxy resin

• Maximum Output Current
• 1.2A

• Operating Voltage
• 110-220V DC

• Panel Type
• Medium Voltage Switchgear / VCB Panels

• Product Type
• Other, VCB Shunt Opening Release (Tripping Coil)

• Protection Class
• Class B

• Protection Level
• Other, IP20

• Rated Current
• 1A continuous

• Rated Insulation Voltage
• 2 kV

• Rated Operation Voltage
• 110V DC / 220V DC

• Rated Voltage
• 110-220V DC

• Standard
• IEC 62271-100

• Surface Color
• Other, Black / Silver / Red

• Surface Finish
• Other, Smooth & Glossy

• Thickness
• Standard as per ABB design

• Way
• Single
