Product Details:

Components Spring Charged Mechanism, Shunt Release, Closing/Tripping Coil
Current Rating 800 - 1250 Amps
Rated Operation Voltage 12 kV
Rated Insulation Voltage 28 kV
Protection Class Class I
Operating Voltage 220V AC/DC
Control System Manual and Motorized Operation
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

VCB Operating Mechanism Price And Quantity

Minimum Order Quantity 1 Piece

Ambient Temperature Range -10C to +55C
Interlocking System Mechanical and Electrical Interlocks
Humidity Tolerance Up to 95% RH (non-condensing)
Mounting Type Panel Mounted
Weight Approx. 45 Kg
Color Code IS 5:1994 Standard
Auxiliary Contacts 6 NO+6 NC
Charging Time (Motor Operated) Less than 15 seconds
Operation Method Spring Energy Storage
Mechanical Endurance More than 10,000 Operations

VCB Operating Mechanism Product Specifications

IP Rating Ip54
Standard IEC 62271-100
Application Medium Voltage Switchgear
Components Spring Charged Mechanism, Shunt Release, Closing/Tripping Coil
Dimension (L*W*H) 550 x 320 x 220 mm
Current Rating 800 - 1250 Amps
Surface Finish Powder Coated
Material High-grade Steel and Copper Alloys
Rated Operation Voltage 12 kV
Product Type VCB Operating Mechanism
Surface Color Black and Silver Grey
Operating Voltage 220V AC/DC
Protection Class Class I
Rated Voltage 12 kV
Rated Current 800 - 1250 A
Control System Manual and Motorized Operation
Rated Insulation Voltage 28 kV
Connectivity Type Terminal Block
Features High Mechanical Life, Low Maintenance, Easy Installation
Base Material Galvanized Steel
Cover Material Powder Coated Sheet Metal
Maximum Output Current 1250 A
Display Type Mechanical Position Indicator
Thickness 3 mm
Frequency (MHz) 50 Hz
Protection Level IP54
Panel Type Vacuum Circuit Breaker Panel
Cooling System Air Natural Cooling
Cabinet Material Sheet Metal
Way Three Phase

Ambient Temperature Range -10C to +55C
Interlocking System Mechanical and Electrical Interlocks
Humidity Tolerance Up to 95% RH (non-condensing)
Mounting Type Panel Mounted
Weight Approx. 45 Kg
Color Code IS 5:1994 Standard
Auxiliary Contacts 6 NO+6 NC
Charging Time (Motor Operated) Less than 15 seconds
Operation Method Spring Energy Storage
Mechanical Endurance More than 10,000 Operations

VCB Operating Mechanism Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Control Panel Accessories' category

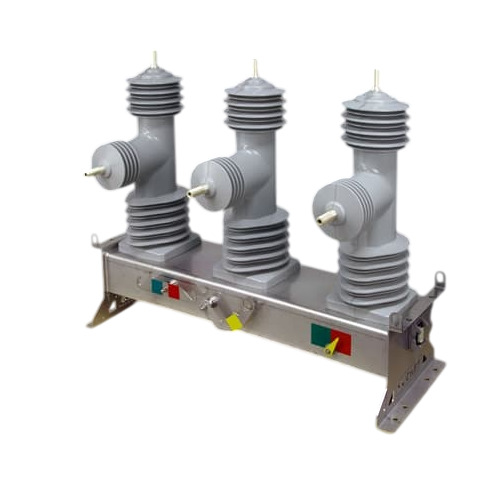

ZW32 Series Medium Voltage Vacuum Recloser Minimum Order Quantity : 1 Cooling System : Natural air cooling Panel Type : Outdoor Panel Way : Threephase Thickness : Customized (Typically 35mm metal housing) Protection Level : Other, Outdoor, antirust, high environmental adaptability Maximum Output Current : 1250A Base Material : Galvanized Steel Cover Material : Other, Epoxy Resin Connectivity Type : RS485, GPRS, 4G, Remote with SCADA Features : Remote operation, Fault detection, Selfdiagnosis, Long mechanical lifespan Rated Insulation Voltage : 40.5kV Operating Voltage : 1240.5kV Protection Class : Class II Rated Voltage : 12kV, 24kV, 36kV Rated Current : 630A, 1250A Control System : Microprocessorbased Relaying Surface Color : Other, Grey Surface Finish : Other, Anticorrosive coating Current Rating : 630A, 1250A Material : Other, Epoxy Resin, Stainless Steel, and Copper Components Rated Operation Voltage : Up to 40.5kV Product Type : Other, Vacuum Recloser Components : Vacuum Interrupter, CT/VT, Control relay, Actuator Dimension (L*W*H) : 650mm x 650mm x 800mm (approx.) IP Rating : Other, IP65 Application : Distribution Automation, Overhead line protection Standard : IEC 62271200, GB19842003 Frequency (MHz) : 50/60Hz Cabinet Material : Stainless Steel

Send Inquiry

ABB Spring Charging Motor Minimum Order Quantity : 1 Cooling System : Selfventilated Panel Type : Modular Way : 3 pole/4 pole Variants Thickness : Standard ABB Specification Protection Level : Other, IP 54 Maximum Output Current : 3.5 A Base Material : Other, Steel Sheet Cover Material : Other, ABS Plastic Connectivity Type : Wired Features : High Reliability, Long Life, Easy Installation, Maintenance Free Rated Insulation Voltage : 690 V Operating Voltage : AC 220/240 V Protection Class : Class I Rated Voltage : 220/240 VAC Rated Current : Up to 3.5A Control System : Electromechanical Surface Color : Other, Grey Surface Finish : Other, Matte & AntiCorrosive Coating Current Rating : 3.5 A Material : Other, Highgrade ABS and Steel Rated Operation Voltage : 220240 V AC Product Type : Other, Spring Charging Motor Components : Motor, Gear, Mounting Accessories Dimension (L*W*H) : 215 x 140 x 100 mm IP Rating : Ip54 Application : MV/LV Breakers, Switchgear Panels Standard : IEC 6094761 Frequency (MHz) : 50/60 Hz Cabinet Material : Powder Coated Steel

Send Inquiry

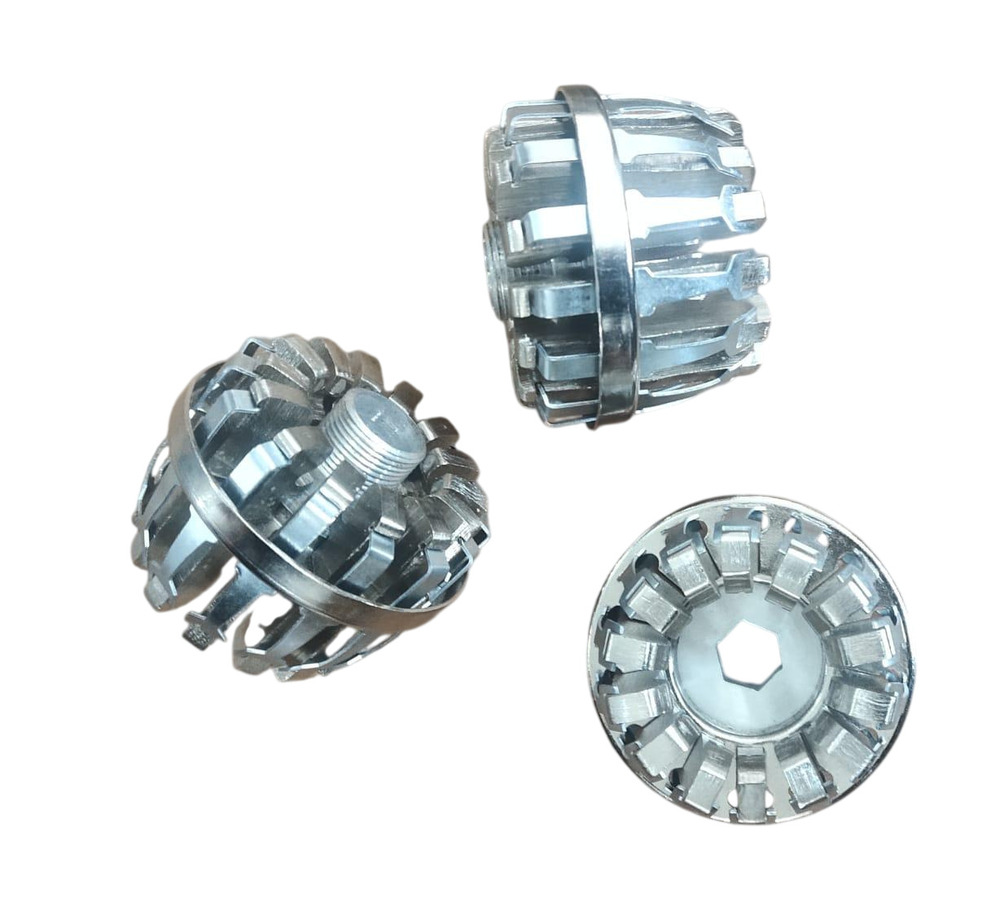

ABB Tulip Jaw Contact Minimum Order Quantity : 1 Cooling System : Natural Air Cooled Panel Type : Switchgear Panel Way : Single Thickness : 8 mm Protection Level : Other, IP20 Maximum Output Current : 1600 A Base Material : Other, Forged Copper Cover Material : Other, Polymide (PA66) Connectivity Type : Busbar Mount Features : High Durability, Low Contact Resistance, Easy Mounting Rated Insulation Voltage : 1000 V Operating Voltage : 1000 V Protection Class : Class I Rated Voltage : 1000 V Rated Current : 1600 A Control System : Electromechanical Surface Color : Other, Silver Surface Finish : Other, Electroplated Current Rating : 1600 A Material : Other, Copper Alloy Rated Operation Voltage : 1000 V Product Type : Other, Tulip Jaw Contact Components : Spring, Contact Fingers, Base Plate Dimension (L*W*H) : 112 mm x 45 mm x 38 mm IP Rating : Other, IP20 Application : Low Voltage Switchgear Systems Standard : ABB Standard, IEC Certified Frequency (MHz) : 50/60 Hz Cabinet Material : Stainless Steel

Send Inquiry

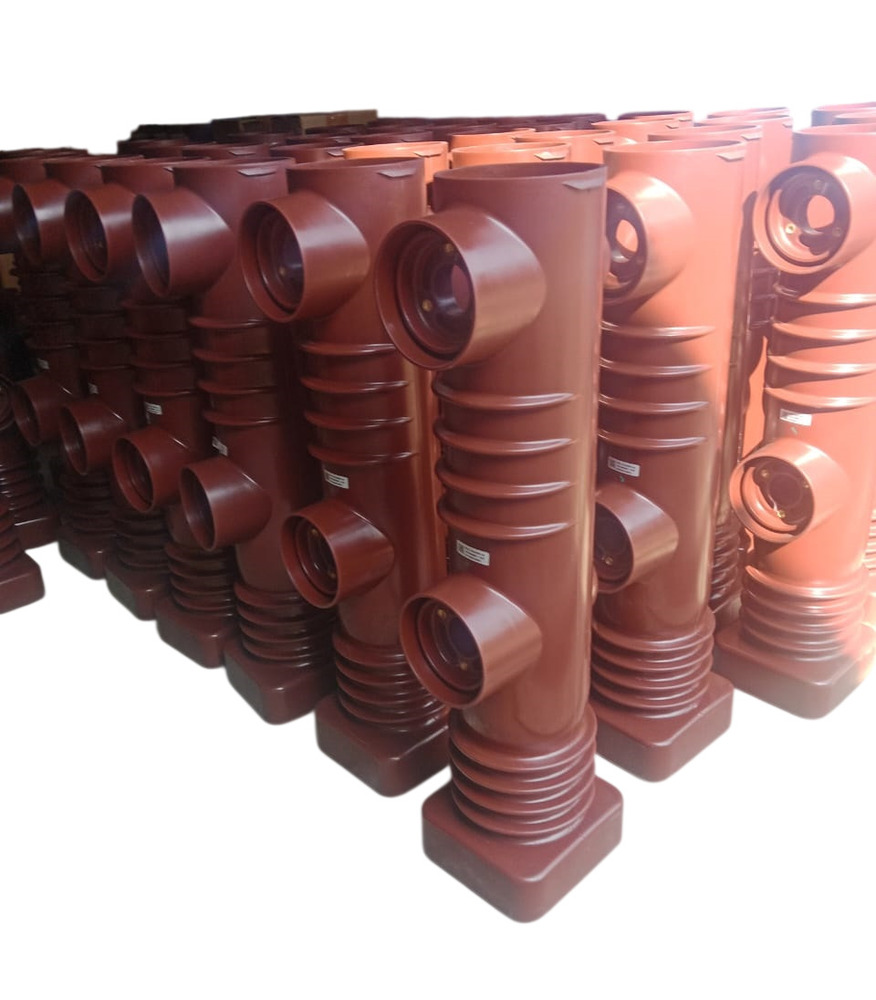

33KV Epoxy Pole Housing Minimum Order Quantity : 1 Cooling System : SelfCooled Panel Type : Medium Voltage Way : 3 Phase Thickness : 815 mm Protection Level : Other, High Maximum Output Current : 1250 A Base Material : Other, Epoxy Composite Cover Material : Other, Insulated Epoxy Connectivity Type : Mechanical Fitment Features : Moisture Proof, High Dielectric, CorrosionResistant Rated Insulation Voltage : 40 kV Operating Voltage : 33,000 V Protection Class : Class I Rated Voltage : 33 kV Rated Current : 1250 A Control System : Manual/Electrical Fitment Surface Color : Other, Reddish Brown Surface Finish : Other, Glossy Current Rating : Up to 1250 A Material : Other, Epoxy Resin Rated Operation Voltage : 33 kV Product Type : Other, Epoxy Pole Housing Components : Epoxy Pole, Metal Inserts Dimension (L*W*H) : 510 x 350 x 150 mm IP Rating : Other, IP 55 Application : Switchgear, Circuit Breaker Standard : IEC/IS Standards Frequency (MHz) : 50 Hz

Send Inquiry
