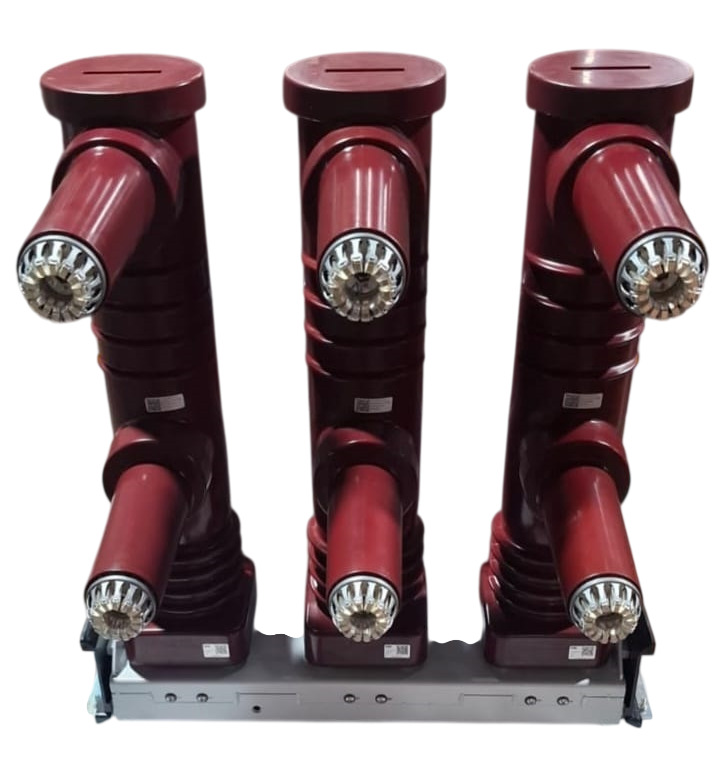

VD4 Medium Voltage Vacuum Circuit Breaker

Name: VD4 Medium Voltage Vacuum Circuit Breaker
Brand: H A Electrical And Switchgear
Price: 35000 INR
Availability: InStock

35000 INR/Piece

Get a Price/Quote

Product Details:

Features High Breaking Capacity, Compact Design, Maintenance Free
Control System Manual/Automatic
Panel Type Indoor
Rated Current 2500 A
Cover Material Mild Steel
Cabinet Material Powder Coated Steel
Operating Voltage 33 kV
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

VD4 Medium Voltage Vacuum Circuit Breaker Price And Quantity

Minimum Order Quantity 1 Piece
Price 35000 INR/Piece

Breaking Capacity 33 kA
Operating Mechanism Spring Charged
Mounting Type Fixed/Withdrawable
Power Rating 500 kVA
Type Electrical Power
Insulation Distance 265 mm
Auxiliary Voltage 110V/220V AC/DC
Arc Extinction Medium Vacuum
Mechanical Life > 10000 Operations
Interlock Mechanical & Electrical
Phase Three Phase

VD4 Medium Voltage Vacuum Circuit Breaker Product Specifications

Rated Voltage 33 kV
Base Material Mild Steel Sheet
Way 3 Way
Connectivity Type Terminal Block
IP Rating IP4X
Product Type Vacuum Circuit Breaker
Dimension (L*W*H) 750 x 1200 x 2300 mm
Rated Insulation Voltage 38 kV
Display Type Analog Meter
Surface Color Grey
Frequency (MHz) 50 Hz
Material Mild Steel
Features High Breaking Capacity, Compact Design, Maintenance Free
Control System Manual/Automatic
Panel Type Indoor
Rated Current 2500 A
Maximum Output Current 2500 A
Cabinet Material Powder Coated Steel
Cover Material Mild Steel
Surface Finish Powder Coated
Operating Voltage 33 kV
Current Rating 2500 A
Components Vacuum Interrupter, CT, PT, Control Wiring
Application Medium Voltage Power Distribution
Protection Class Class I
Standard IEC 62271-100
Protection Level High Voltage
Rated Operation Voltage 33 kV
Thickness 3 mm (panel)
Cooling System Air Cooled

Breaking Capacity 33 kA
Operating Mechanism Spring Charged
Mounting Type Fixed/Withdrawable
Power Rating 500 kVA
Type Electrical Power
Insulation Distance 265 mm
Auxiliary Voltage 110V/220V AC/DC
Arc Extinction Medium Vacuum
Mechanical Life > 10000 Operations
Interlock Mechanical & Electrical
Phase Three Phase

VD4 Medium Voltage Vacuum Circuit Breaker Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India
