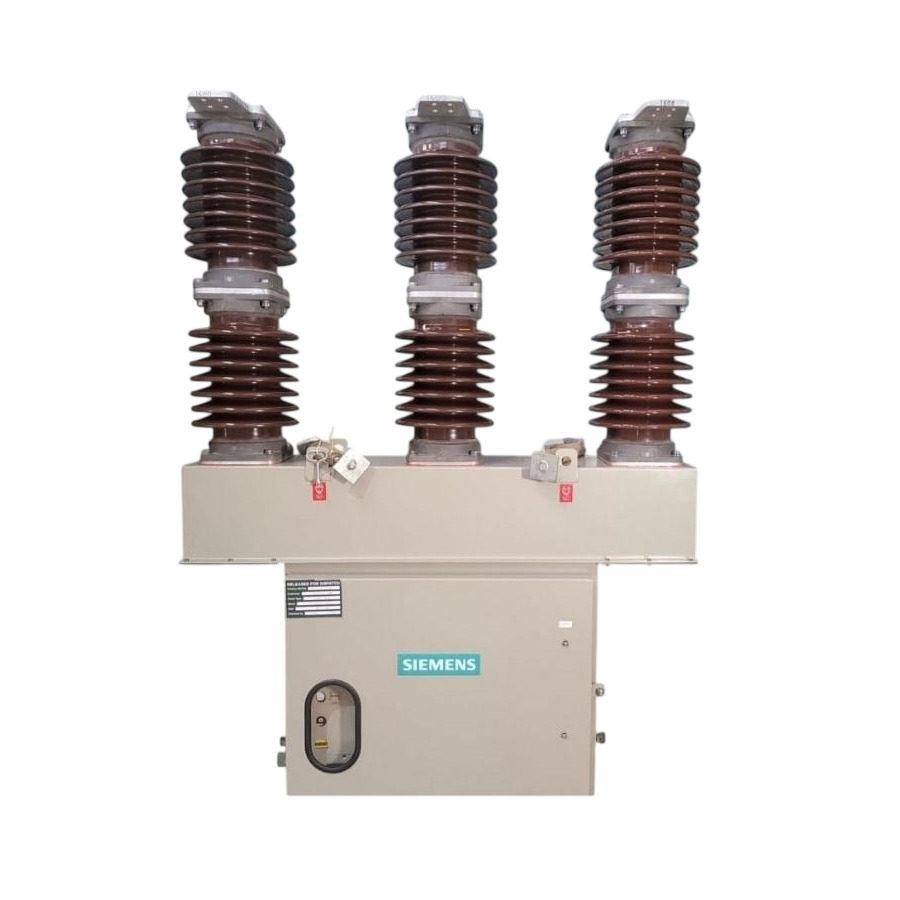

33kv Outdoor Type Vacuum Circuit Breaker

Name: 33kv Outdoor Type Vacuum Circuit Breaker
Brand: H A Electrical And Switchgear
Price: 205000 INR
Availability: InStock

205000 INR/Piece

Get a Price/Quote

Product Details:

Cooling System Air Cooled
Thickness 3 mm
Protection Class Class I
Rated Current 1600A
Current Rating 1600A
Connectivity Type Terminal Lug
Way 3 Way
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

33kv Outdoor Type Vacuum Circuit Breaker Price And Quantity

Price 205000 INR/Piece
Minimum Order Quantity 3 Piece

Relative Humidity <95%
Spring Charging Time <15 sec
Type Test Performed as per IEC
Ambient Temp Range -10C to +55C
Mechanical Endurance 10,000 operations
Auxiliary Voltage 110-220V AC/DC
Control Cabinet Integrated
Short Circuit Breaking 31.5 kA
Interruption Medium Vacuum
Terminal Type Copper Lug
Pole Structure Three Poles
Earth Switch Available
Creepage Distance 900 mm
Arc Quenching Vacuum Type
Operation Mode Manual/Motor
Insulation Material Epoxy Resin
Mounting Outdoor Floor Mount

33kv Outdoor Type Vacuum Circuit Breaker Product Specifications

Way 3 Way
Dimension (L*W*H) 1700x1650x2450 mm
Maximum Output Current 1600A
Surface Finish Powder Coated
Rated Voltage 33 kV
Display Type Mechanical Indication
Base Material Stainless Steel
Surface Color Grey
IP Rating IP55
Product Type Outdoor Vacuum Circuit Breaker
Material Stainless Steel
Standard IS 13118 / IEC 62271-100
Cooling System Air Cooled
Application Power Distribution/Transmission
Thickness 3 mm
Protection Class Class I
Rated Current 1600A
Current Rating 1600A
Connectivity Type Terminal Lug
Components Vacuum Interrupter, CT, PT
Control System Manual and Motorized
Panel Type Outdoor Panel
Rated Insulation Voltage 38 kV
Cabinet Material Stainless Steel
Frequency (MHz) 50 Hz
Rated Operation Voltage 33 kV
Protection Level IP55
Operating Voltage 33 kV
Features High Interrupting Capacity, Outdoor Operation, Low Maintenance
Cover Material Stainless Steel

Relative Humidity <95%
Spring Charging Time <15 sec
Type Test Performed as per IEC
Ambient Temp Range -10C to +55C
Mechanical Endurance 10,000 operations
Auxiliary Voltage 110-220V AC/DC
Control Cabinet Integrated
Short Circuit Breaking 31.5 kA
Interruption Medium Vacuum
Terminal Type Copper Lug
Pole Structure Three Poles
Earth Switch Available
Creepage Distance 900 mm
Arc Quenching Vacuum Type
Operation Mode Manual/Motor
Insulation Material Epoxy Resin
Mounting Outdoor Floor Mount

33kv Outdoor Type Vacuum Circuit Breaker Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India
