Compact Ring Main Unit

Get a Price/Quote

Product Details:

Rated Insulation Voltage 28 kV
Way 3 Way
Operating Voltage 12 kV
Rated Current 630 A
Components Load Break Switch, Circuit Breaker, Earth Switch
Current Rating 630 A
Thickness 2 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Compact Ring Main Unit Price And Quantity

Minimum Order Quantity 1 Piece

Compliance ISO 9001, ISO 14001
Gas Type SF6
Interlocking Type Key and Electrical Interlock
Installation Floor Mounted
Switchgear Type SF6 Gas Insulated Metal-Enclosed
Mechanical Endurance 5000 Operations
Ambient Temperature Range -25C to +40C
Internal Arc Classification AFLR 16 kA 1s
Insulation Level 28/75 kV
Operating Mechanism Spring Assisted
Secondary Wiring Included as per requirement

Compact Ring Main Unit Product Specifications

Frequency (MHz) 50 Hz
Dimension (L*W*H) 750 x 1040 x 1500 mm
Rated Operation Voltage 12 kV
Standard IEC 62271-200
Protection Level Fully Enclosed, SF6 Gas Insulated
Thickness 2 mm
Current Rating 630 A
Components Load Break Switch, Circuit Breaker, Earth Switch
Rated Current 630 A
Operating Voltage 12 kV
Surface Finish Powder Coated
Way 3 Way
Rated Insulation Voltage 28 kV
Surface Color Light Grey (RAL 7035)
Application Distribution and Switching of Medium Voltage Networks
Maximum Output Current 630 A
Cooling System Air Cooled
Control System Manual / Motorized
Rated Voltage 12 kV
IP Rating IP4X
Cover Material Powder Coated Steel
Panel Type Modular
Material Cold Rolled Steel Sheet
Connectivity Type Cable & Busbar Connections
Product Type Compact Ring Main Unit
Base Material Mild Steel
Protection Class Class II
Cabinet Material Galvanized Steel
Features Compact design, maintenance free, arc proof, extensible
Display Type Analog/LED Indicators

Compliance ISO 9001, ISO 14001
Gas Type SF6
Interlocking Type Key and Electrical Interlock
Installation Floor Mounted
Switchgear Type SF6 Gas Insulated Metal-Enclosed
Mechanical Endurance 5000 Operations
Ambient Temperature Range -25C to +40C
Internal Arc Classification AFLR 16 kA 1s
Insulation Level 28/75 kV
Operating Mechanism Spring Assisted
Secondary Wiring Included as per requirement

Compact Ring Main Unit Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Ring Main Unit' category

11kv ABB Ring Main Unit Minimum Order Quantity : 1 Rated Voltage : 11 kV Maximum Output Current : 630 A Cooling System : Air Cooled Control System : Manual and Remote Base Material : Mild Steel Protection Class : Class II Cabinet Material : Sheet Steel Features : Compact Design, Maintenance Free, Internal Arc Protection Display Type : Other, Analog/Mechanical IP Rating : Ip54 Cover Material : Other, Steel Panel Type : Modular Connectivity Type : Indoor/Outdoor Material : Mild Steel Product Type : Other, Ring Main Unit Rated Operation Voltage : 11 kV Dimension (L*W*H) : 950 x 800 x 1500 mm Standard : IEC 62271200 Protection Level : IP54 Thickness : 3 mm Frequency (MHz) : 50 Hz Surface Finish : Powder Coated Way : 3 Way Rated Insulation Voltage : 12 kV Surface Color : Other, Grey Application : Power Distribution Current Rating : 630 A Components : Vacuum Circuit Breaker, Isolator, Load Break Switch, Earth Switch, CT/PT, Protection Relay Operating Voltage : 11 kV Rated Current : 630 A

Send Inquiry

Lucy Electric Aegis Plus Ring Main Unit Minimum Order Quantity : 1 Rated Voltage : 12 kV / 24 kV Maximum Output Current : 630 A Cooling System : Air insulated cabinet (natural cooling) Control System : Manual and motorized/SCADAready options Base Material : Galvanized Steel Protection Class : Class II insulation Cabinet Material : Galvanized/powder coated steel Features : Extensible design, compact size, low maintenance, internal arc classification, remote monitoring ready Display Type : Other, Mimic diagram, mechanical indicators, option for digital touchscreen HMI IP Rating : Other, IP54 (enclosure) Cover Material : Other, Powder coated steel Panel Type : Fully modular, extensible, lowmaintenance Connectivity Type : Remote monitoring and control capability with IEC 61850 communication Material : Other, High quality corrosionresistant steel and stainless steel for critical components Product Type : Other, SF6 GasInsulated Ring Main Unit (RMU) Rated Operation Voltage : 12 kV / 24 kV Dimension (L*W*H) : Varies by configuration (typical: 800 x 1000 x 1650 mm) Standard : IEC 62271200, IEC 62271103, IEC 62271102, ENA TS 1224, 1220, 4136, BS 6624 Protection Level : Other, Internal arc classified to AFL 16 kA, 1s / Degree of protection: IP54 Thickness : 1.5 mm to 2 mm (steel thickness) Frequency (MHz) : 50/60 Hz Surface Finish : Other, Powder coated for enhanced corrosion protection Way : 2, 3, 4, and 5 way configurations available Rated Insulation Voltage : 28 kV / 50 kV (impulse withstand) Surface Color : Other, Light grey (RAL 7035) Application : Secondary distribution networks, utilities, industrial and commercial installations Current Rating : 630 A (main busbar and feeder) Components : Load break switch, earthing switches, vacuum or SF6 circuit breaker, CTs and VTs (optional), cable terminations, mechanical interlocks Operating Voltage : 12 kV / 24 kV Rated Current : 630 A

Send Inquiry

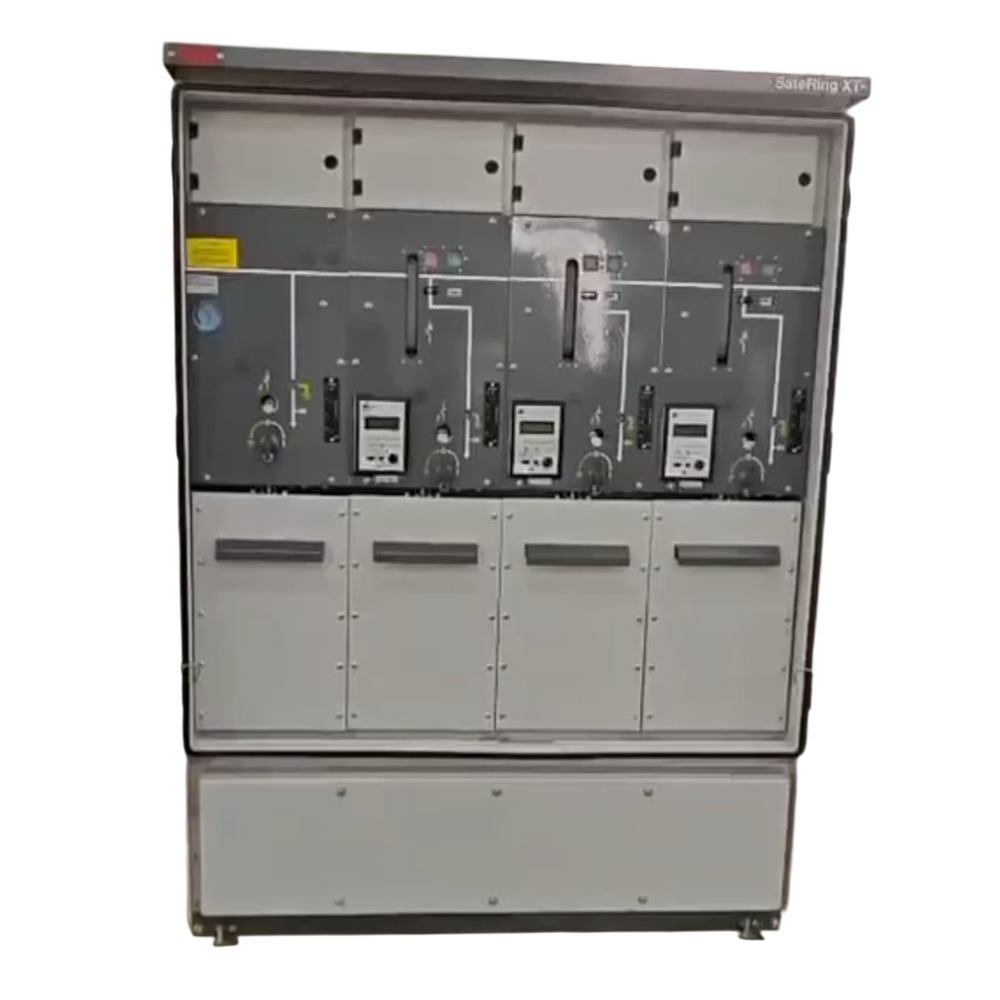

ABB SafeRing XT Ring Main Unit Minimum Order Quantity : 1 Rated Voltage : 12 kV Maximum Output Current : 630 A Cooling System : SelfAir Cooled Control System : Manual and Motorized Option Base Material : Other, Galvanized Sheet Protection Class : Class II Cabinet Material : Corrosion Resistant Steel Features : Compact Design, MaintenanceFree, Modular, High Safety Display Type : Other, Mechanical Indication Windows IP Rating : Other, IP67 (SF6 Tank), IP4X (External Surface) Cover Material : Other, Powder Coated Steel Panel Type : Modular GIS Panel Connectivity Type : SCADA/Digital Ready Material : Other, Stainless Steel, Galvanized Steel and HighQuality Insulated Compounds Product Type : Other, Gas Insulated Ring Main Unit Rated Operation Voltage : 12/24 kV Dimension (L*W*H) : 650 x 800 x 1650 mm Standard : IEC 62271200, IEC 60265 Protection Level : Other, Internal arc classified, up to AFLR 20 kA/1s Thickness : 2 mm (Panel Thickness) Frequency (MHz) : 50/60 Hz Surface Finish : Powder Coated Way : 2, 3, 4, 5, or 6 Ways Rated Insulation Voltage : 28 kV Surface Color : Other, Light Grey (RAL 7035) Application : Medium Voltage Distribution Networks Current Rating : Up to 630 A Components : Vacuum Circuit Breaker, Earthing Switch, Load Break Switch, Fuse Unit Operating Voltage : Up to 24 kV Rated Current : Up to 630 A
