Electric Easergy P1 Series Protection Relay

Get a Price/Quote

Product Details:

Protect Feature Overcurrent, Earth Fault, Differential, Undervoltage, Overvoltage
Coil Power Approx. 1.2 W
Coil Voltage 24/48/110/220 V AC/DC
Contact Form SPDT (Single Pole Double Throw)
Ambient Temperature -10C to +55C
Power Consumption < 10 VA
Mechanical Life 10 million operations
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electric Easergy P1 Series Protection Relay Price And Quantity

Minimum Order Quantity 1 Piece

Communication Protocol RS485 Modbus RTU
Mounting Type Panel Mount
Auxiliary Supply Voltage Wide Range - 24 to 220 V AC/DC
Trip Circuit Supervision Available
HMI/Control Buttons Menu, Up, Down, Enter, Escape
Enclosure Protection IP54 front, IP20 rear
Disturbance Recorder Yes, built-in
Frequency 50/60 Hz
Event Recording Yes, up to 100 events
Compliance Standards IEC, ANSI, IS
Self Diagnostics Automatic at startup and during operation
Display Type 7-segment digital LED display

Electric Easergy P1 Series Protection Relay Product Specifications

Size 144 x 144 mm
Supply Terminal Rear side terminal block
Color White and Grey
Coil Power Approx. 1.2 W
Contact Load 5 A at 250 V AC / 30 V DC
Dimension (L*W*H) 144 mm x 144 mm x 100 mm
Protect Feature Overcurrent, Earth Fault, Differential, Undervoltage, Overvoltage
Ambient Temperature -10C to +55C
Contact Form SPDT (Single Pole Double Throw)
Rated Voltage 24/48/110/220 V AC/DC
Usage Protection relay for electrical panels and distribution systems
Theory Electronic relay (microprocessor based)
Operate Time < 40 ms
Coil Voltage 24/48/110/220 V AC/DC
Dielectiric Strength 2 kV (rms) for 1 minute
Working Temperature -10C to +55C
Mechanical Life 10 million operations
Weight Approx. 1.2 kg
Insulation Resistance > 100 M at 500 V DC
Terminal Type Screw type terminals
Power Consumption < 10 VA
Contact Material Silver Alloy
Contact Resistance < 100 m
Product Type Digital Protection Relay

Communication Protocol RS485 Modbus RTU
Mounting Type Panel Mount
Auxiliary Supply Voltage Wide Range - 24 to 220 V AC/DC
Trip Circuit Supervision Available
HMI/Control Buttons Menu, Up, Down, Enter, Escape
Enclosure Protection IP54 front, IP20 rear
Disturbance Recorder Yes, built-in
Frequency 50/60 Hz
Event Recording Yes, up to 100 events
Compliance Standards IEC, ANSI, IS
Self Diagnostics Automatic at startup and during operation
Display Type 7-segment digital LED display

Electric Easergy P1 Series Protection Relay Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Numerical Relay' category

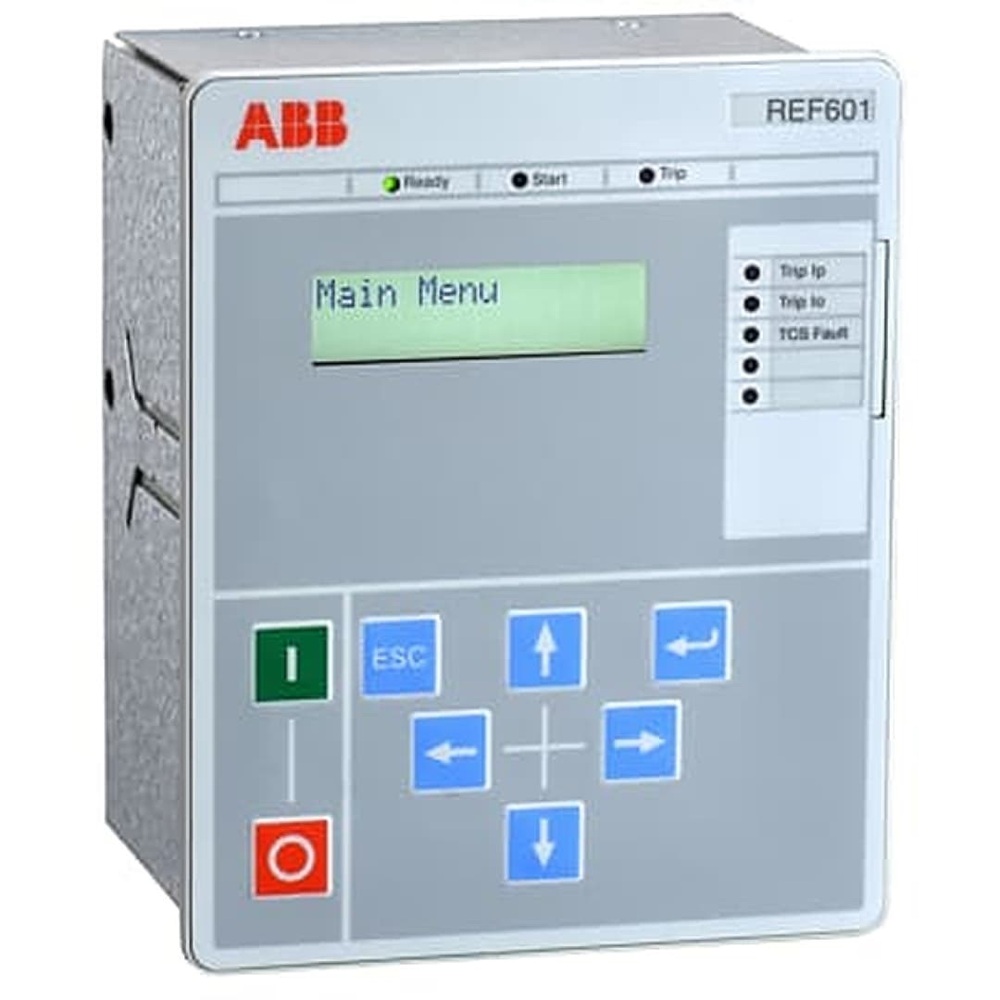

ABB REF601 Feeder Protection And Control Relay Minimum Order Quantity : 5 Contact Resistance : <100 m Contact Material : AgCdO Contact Product Type : Feeder Protection Relay Dielectiric Strength : 2 kV, 50/60 Hz, 1 min Weight : Approx. 2.5 kg Mechanical Life : 10^6 operations Working Temperature : 25C to +60C Insulation Resistance : 100 M at 500 VDC Terminal Type : Other, Plugin terminals Power Consumption : Max 10 VA Ambient Temperature : 25C to +55C Contact Form : SPDT/DPDT (Selectable) Rated Voltage : 265 V Usage : Feeder Protection and Control Theory : Other , Microprocessorbased relay Coil Voltage : 110250 V AC/DC Operate Time : Instantaneous/Trip dependent Size : Other, DIN 96mm module Supply Terminal : Rear terminal block Color : Grey/Black front panel Protect Feature : Other, Overcurrent, Earth Fault, Communication Coil Power : Low consumption Contact Load : Other, 5A continuous Dimension (L*W*H) : 96 x 192 x 160 mm

Send Inquiry

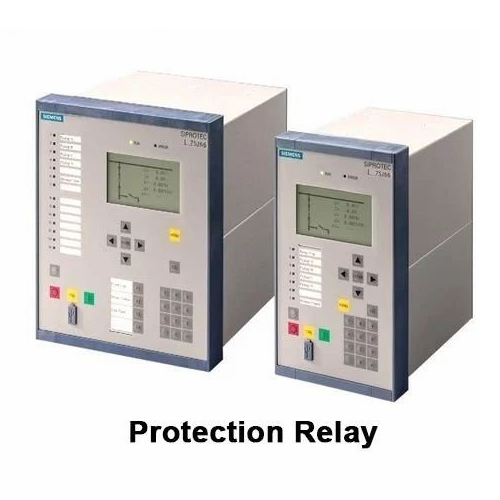

Siemens SIPROTEC 7SJ66 Protection Relay Minimum Order Quantity : 1 Contact Resistance : < 50 m Contact Material : Silver alloy Product Type : Numerical Protection Relay Dielectiric Strength : 2 kV AC, 1 min between all electrical circuits and earth Weight : Approx. 2.1 kg Mechanical Life : 10 million operations Working Temperature : 10C to +55C Insulation Resistance : 100 M Terminal Type : Other, Screw terminal / Plugin terminal blocks Power Consumption : Less than 20 VA Ambient Temperature : 25C to +70C Contact Form : SPDT (Single Pole Double Throw) Rated Voltage : 110 V AC / 220 V AC / 250 V DC Usage : Protection, control, measurement, and automation in medium and high voltage power systems Theory : Other , Numerical microprocessorbased protection Coil Voltage : 24 V DC / 48 V DC / 110 V DC (for trip/output relays) Operate Time : Fastacting, typically < 20 ms Size : Other, 1/2 x 19 inch, 4 U high Supply Terminal : Rear side connectors Color : Grey Protect Feature : Other, Overcurrent, earth fault, voltage, frequency, directional protection, breaker failure protection Coil Power : Approx. 1.2 W Contact Load : Other, 8 A at 250 V AC, resistive Dimension (L*W*H) : Approx. 193 mm x 187 mm x 130 mm

Send Inquiry

Siemens SIPROTEC 4 Numerical Protection Relay Minimum Order Quantity : 1 Contact Resistance : < 100 m Contact Material : AgCdO (Silver Cadmium Oxide) Product Type : Numerical Protection Relay Dielectiric Strength : 2 kV, 50 Hz, 1 min Weight : Approx. 2.5 kg Mechanical Life : 10 million operations Working Temperature : 25C to +55C Insulation Resistance : 100 M at 500 V DC Terminal Type : Other, Screw Terminals Power Consumption : < 18 W Ambient Temperature : 25C to +70C Contact Form : SPDT / DPDT (varies by model) Rated Voltage : 110/220 V AC/DC Usage : Numerical Protection and Monitoring of Electrical Systems Theory : Other , MicroprocessorBased Numerical Protection Coil Voltage : Not Applicable (Numerical Relay) Operate Time : < 15 ms Size : Other, Standard 1/2 19inch rack width Supply Terminal : Rear Connection Terminals Color : Gray Protect Feature : Other, Overcurrent, Earth Fault, Multifunctional Protection, Distance Protection, Feeder Protection Coil Power : Not Applicable (Numerical Relay) Contact Load : Other, 8 A at 250 V AC, 5 A at 30 V DC Dimension (L*W*H) : approx. 270 x 144 x 185 mm

Send Inquiry

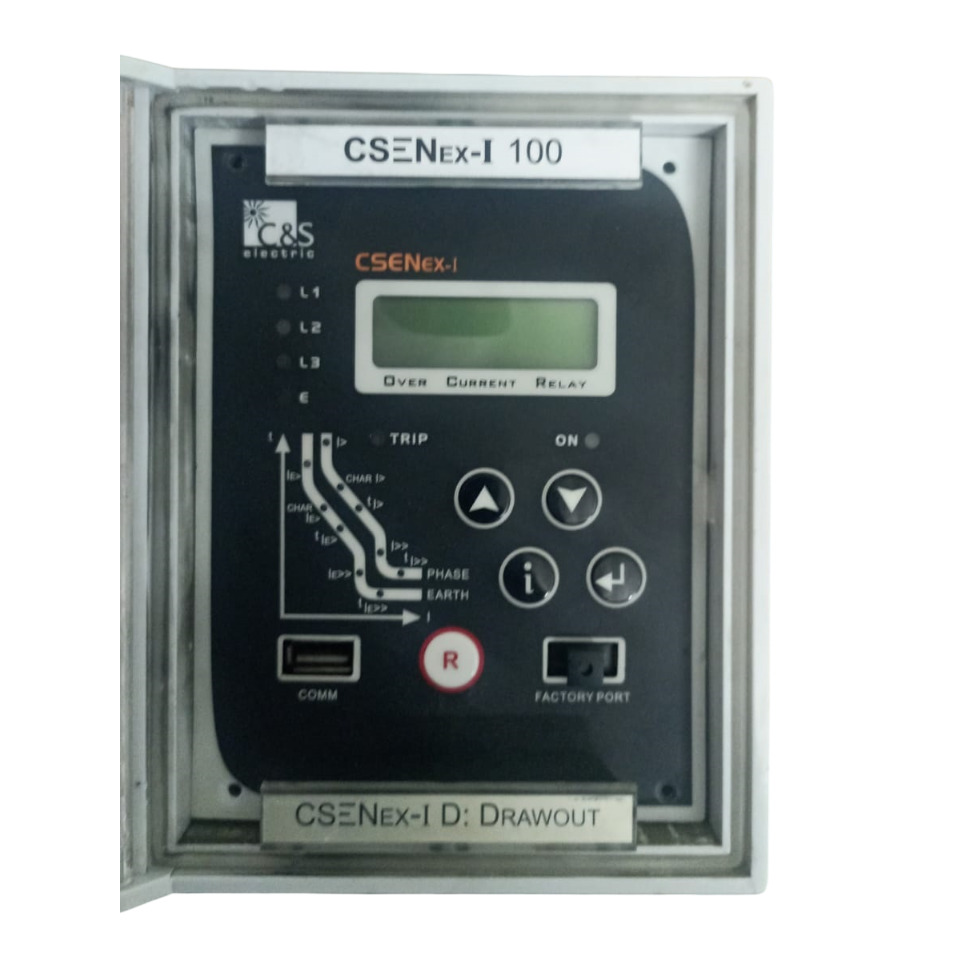

CSENEX-I 100 Numerical Non-Directional Current Protection Relay Minimum Order Quantity : 1 Contact Resistance : <= 50 m Contact Material : Silver Alloy Product Type : Numerical NonDirectional Current Protection Relay Dielectiric Strength : 2kV, 50Hz for 1 min Weight : Approx. 1.1 kg Mechanical Life : 10 million operations Working Temperature : 10C to +55C Insulation Resistance : = 1000 M @ 500VDC Terminal Type : Other, Screw Terminal Power Consumption : < 5VA Ambient Temperature : 10C to +55C Contact Form : SPDT Rated Voltage : 265 V Usage : Current Protection Theory : Other , Microcontroller Based Coil Voltage : 265 V Operate Time : Instantaneous & Definite Time Size : Other, Compact Supply Terminal : Rear Color : Grey Protect Feature : Other, Nondirectional, Overcurrent Coil Power : < 5VA Contact Load : Other, 5A @ 250VAC Dimension (L*W*H) : 110 x 130 x 80 mm
