Industrial Power Control Center Panel

Get a Price/Quote

Product Details:

Current Rating 200 A - 6300 A
Connectivity Type Modbus, Ethernet (Optional)
Thickness Panel body: 2 mm, Door: 2.5 mm
Cooling System Natural Air / Forced Air (Optional)
Protection Class Class I
Rated Insulation Voltage 690 V
Cover Material Powder Coated Sheet Metal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Industrial Power Control Center Panel Price And Quantity

Minimum Order Quantity 1 Piece

Ambient Temperature Range -10C to +50C
Cable Entry Top/Bottom Entry
Mounting Type Floor Standing
Paint Thickness 60-80 microns
Short Circuit Withstand Capacity Up to 65 kA
Door Type Hinged, Lockable with Gasket Sealing
Seismic Qualification Available on Request
Service Access Front/Rear
Panel Weight Varies as per Design and Rating
Wiring PVC Insulated Copper Wires
Internal Separation Up to Form 4B
Busbar Material High Conductivity Electrolytic Copper / Aluminium
Earth Bar Provided
Sheet Thickness Tolerance 0.2 mm
Documentation Test Certificates, GA Drawings, Wiring Diagram

Industrial Power Control Center Panel Product Specifications

IP Rating IP54 / IP55
Surface Finish Powder Coated
Cabinet Material Powder Coated Steel
Maximum Output Current 6300 A
Way Multiple Ways (Customizable)
Rated Operation Voltage 415 V
Panel Type Floor Mount, Compartmentalized
Protection Level IP54 / IP55
Dimension (L*W*H) Customized as per Requirement
Control System Manual or PLC Based
Display Type Analog / Digital Meters
Operating Voltage 415 V AC
Base Material CRCA Steel
Features Compartmentalized construction, Adjustable incoming/outgoing sections, Cable alley, Safety interlocks, Earthing provision
Product Type Power Control Center (PCC) Panel
Cooling System Natural Air / Forced Air (Optional)
Thickness Panel body: 2 mm, Door: 2.5 mm
Protection Class Class I
Current Rating 200 A - 6300 A
Connectivity Type Modbus, Ethernet (Optional)
Frequency (MHz) 50 Hz
Rated Current 200 A - 6300 A
Application Industrial Power Distribution and Control
Material CRCA Sheet Metal
Components MCCBs, ACBs, Contactors, Meters, Relays, Indicating Lamps, CTs, PTs
Surface Color Siemens Grey (RAL 7032)
Rated Voltage 415 V AC
Cover Material Powder Coated Sheet Metal
Rated Insulation Voltage 690 V
Standard IEC 61439, IS 8623

Ambient Temperature Range -10C to +50C
Cable Entry Top/Bottom Entry
Mounting Type Floor Standing
Paint Thickness 60-80 microns
Short Circuit Withstand Capacity Up to 65 kA
Door Type Hinged, Lockable with Gasket Sealing
Seismic Qualification Available on Request
Service Access Front/Rear
Panel Weight Varies as per Design and Rating
Wiring PVC Insulated Copper Wires
Internal Separation Up to Form 4B
Busbar Material High Conductivity Electrolytic Copper / Aluminium
Earth Bar Provided
Sheet Thickness Tolerance 0.2 mm
Documentation Test Certificates, GA Drawings, Wiring Diagram

Industrial Power Control Center Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'PCC Panel' category

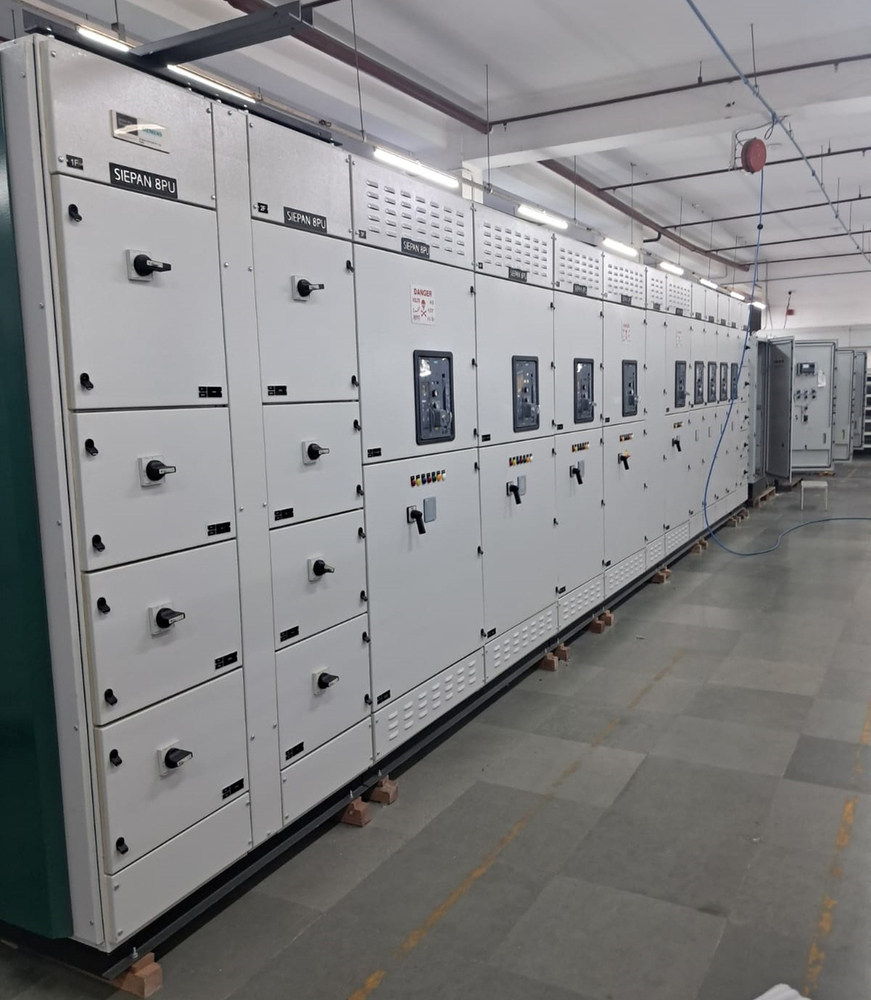

100A Power Control Center Panel Minimum Order Quantity : 1 Standard : IEC 61439 / IS 8623 Cover Material : Other, Mild Steel Sheet Rated Insulation Voltage : 660V Components : MCB, MCCB, Busbar, Meter, Indicator Lamps Surface Color : Other, Grey Rated Voltage : 415V AC Rated Current : 100A Application : Industrial Power Distribution Material : Other, Mild Steel (MS) Connectivity Type : Hard Wired Frequency (MHz) : 50 Hz Current Rating : 100A Protection Class : Class I Product Type : Other, Power Control Center Panel Cooling System : Natural Air Ventilation Thickness : 2 mm Features : Earth Busbar, Cable Gland Plate, Lockable Door Base Material : Other, Mild Steel Sheet Operating Voltage : 415V AC Display Type : Analog Panel Type : Floor Mounted Dimension (L*W*H) : 1200mm x 900mm x 400mm Protection Level : Other, IP42 Control System : Manual Way : 3 Way Rated Operation Voltage : 415V IP Rating : Other, IP42 Surface Finish : Powder Coated Cabinet Material : Mild Steel Maximum Output Current : 100A
