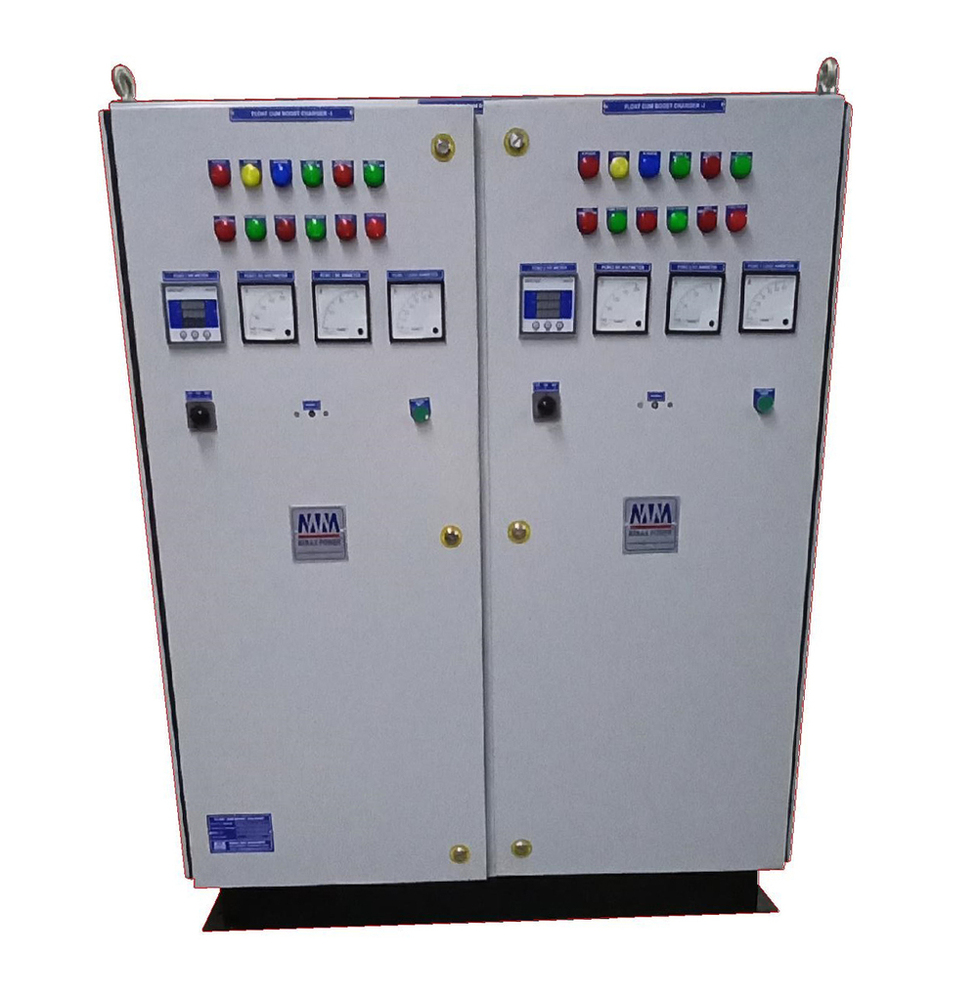

Industrial Float Cum Boost Charger Panel

Get a Price/Quote

Product Details:

Connectivity Type Hard Wired
Rated Insulation Voltage 690 V
Rated Current 300 Amps
Operating Voltage 415 V AC / 230 V AC
Components Digital Controller, MCCBs, MCBs, Rectifier, Transformer, Indication Lamps
Panel Type Floor Mounted / Indoor
Current Rating Maximum 300 Amps
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Industrial Float Cum Boost Charger Panel Price And Quantity

Minimum Order Quantity 1 Piece

Interlocks Mechanical & Electrical Interlocks
Earthing Twin Copper Earth Busbar Provided
Shock Protection Fully Shrouded Terminals
Humidity Tolerance Up to 90% RH (Non-Condensing)
Indications LED for Charging, Mains ON, Faults
Ambient Temperature -5C to +45C
Panel Weight Approx. 120 kg
Charging Modes Float Mode and Boost Mode Selection
Charger Efficiency Above 85%
Cable Entry Bottom Entry
Compliance CE Marked / ROHS Compliant
Mounting Type Free Standing
Max Output 300 Amps at 415 V AC

Industrial Float Cum Boost Charger Panel Product Specifications

Rated Insulation Voltage 690 V
Rated Current 300 Amps
Dimension (L*W*H) 1800 x 800 x 600 mm
Connectivity Type Hard Wired
Frequency (MHz) 50 Hz
Standard IS 2026 / IEC 146 / IEC 61439-1
Components Digital Controller, MCCBs, MCBs, Rectifier, Transformer, Indication Lamps
Rated Voltage 415 V AC
Operating Voltage 415 V AC / 230 V AC
Current Rating Maximum 300 Amps
Panel Type Floor Mounted / Indoor
Rated Operation Voltage 415 V AC
IP Rating Ip54
Cover Material Powder-coated Metal
Material Mild Steel (MS)
Surface Color Siemens Grey / Customized
Surface Finish Epoxy Powder Coated
Features Auto/Manual Selection, High Reliability, Robust Construction, Overload Protection, Compact Design
Cooling System Forced Air
Display Type Digital Meter
Protection Class Class I
Way Double Front
Protection Level Over Voltage / Under Voltage / Short Circuit / Overload
Maximum Output Current 300 Amps
Thickness 2 mm (cabinet)
Application Industrial Battery Charging and Backup
Base Material CRCA Sheet Steel
Control System Automatic / Manual
Product Type Industrial Float Cum Boost Charger Panel
Cabinet Material CRCA Steel

Interlocks Mechanical & Electrical Interlocks
Earthing Twin Copper Earth Busbar Provided
Shock Protection Fully Shrouded Terminals
Humidity Tolerance Up to 90% RH (Non-Condensing)
Indications LED for Charging, Mains ON, Faults
Ambient Temperature -5C to +45C
Panel Weight Approx. 120 kg
Charging Modes Float Mode and Boost Mode Selection
Charger Efficiency Above 85%
Cable Entry Bottom Entry
Compliance CE Marked / ROHS Compliant
Mounting Type Free Standing
Max Output 300 Amps at 415 V AC

Industrial Float Cum Boost Charger Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India
