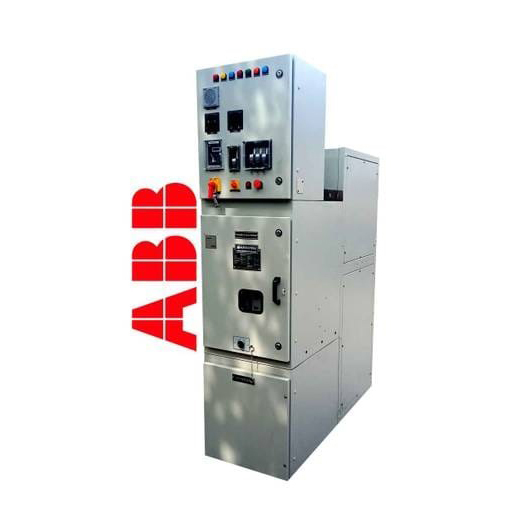

ABB 11kV Vacuum Circuit Breaker Panel

Name: ABB 11kV Vacuum Circuit Breaker Panel
Brand: H A Electrical And Switchgear
Price: 295000 INR
Availability: InStock

295000 INR/Piece

Get a Price/Quote

Product Details:

Current Rating 1000A
Way 3-Way
Base Material Mild Steel base
Connectivity Type Hardwired
Thickness 2 mm
Protection Class Class I
Cover Material Stainless Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ABB 11kV Vacuum Circuit Breaker Panel Price And Quantity

Price 295000 INR/Piece
Minimum Order Quantity 1 Piece

Panel Shape Cubical
Manufacturing Brand ABB
Arc Extinction Medium Vacuum
Switchgear Type Metal Clad
Front Access Yes
Life Expectancy 30,000 operations
Busbar Material Tinned Copper
Switching Duty High
Compartment Type Segregated
Panel Depth 800 mm
Front Panel Double Door
Mounting Type Floor Standing
Break Type Draw-out
Test Facilities Available
Panel Weight Approx. 350 kg
Earthing Switch Provided
Phase Three Phase
Interlock Type Electrical-Mechanical
Relay Type Numerical
Auxiliary Voltage 110/220V AC/DC

ABB 11kV Vacuum Circuit Breaker Panel Product Specifications

Panel Type Indoor
Rated Voltage 11 kV
Components VCB, CT, PT, Busbar
Display Type Analog meters
IP Rating IP4X
Cooling System Natural Air Cooling
Cabinet Material Stainless Steel
Protection Level High
Features Arc Proof, Interlocked, Maintenance Free
Operating Voltage 11 kV
Standard IEC 62271-200
Control System Semi Automatic
Rated Current 1000A
Application Industrial/Power Utility
Rated Insulation Voltage 12 kV
Frequency (MHz) 50/60 Hz
Maximum Output Current 1000A
Dimension (L*W*H) 2200x800x1600 mm
Current Rating 1000A
Way 3-Way
Base Material Mild Steel base
Connectivity Type Hardwired
Material Stainless Steel (SS)
Thickness 2 mm
Surface Color Light Grey
Surface Finish Powder Coated
Rated Operation Voltage 11 kV
Protection Class Class I
Cover Material Stainless Steel
Product Type Vacuum Circuit Breaker Panel

Panel Shape Cubical
Manufacturing Brand ABB
Arc Extinction Medium Vacuum
Switchgear Type Metal Clad
Front Access Yes
Life Expectancy 30,000 operations
Busbar Material Tinned Copper
Switching Duty High
Compartment Type Segregated
Panel Depth 800 mm
Front Panel Double Door
Mounting Type Floor Standing
Break Type Draw-out
Test Facilities Available
Panel Weight Approx. 350 kg
Earthing Switch Provided
Phase Three Phase
Interlock Type Electrical-Mechanical
Relay Type Numerical
Auxiliary Voltage 110/220V AC/DC

ABB 11kV Vacuum Circuit Breaker Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India
