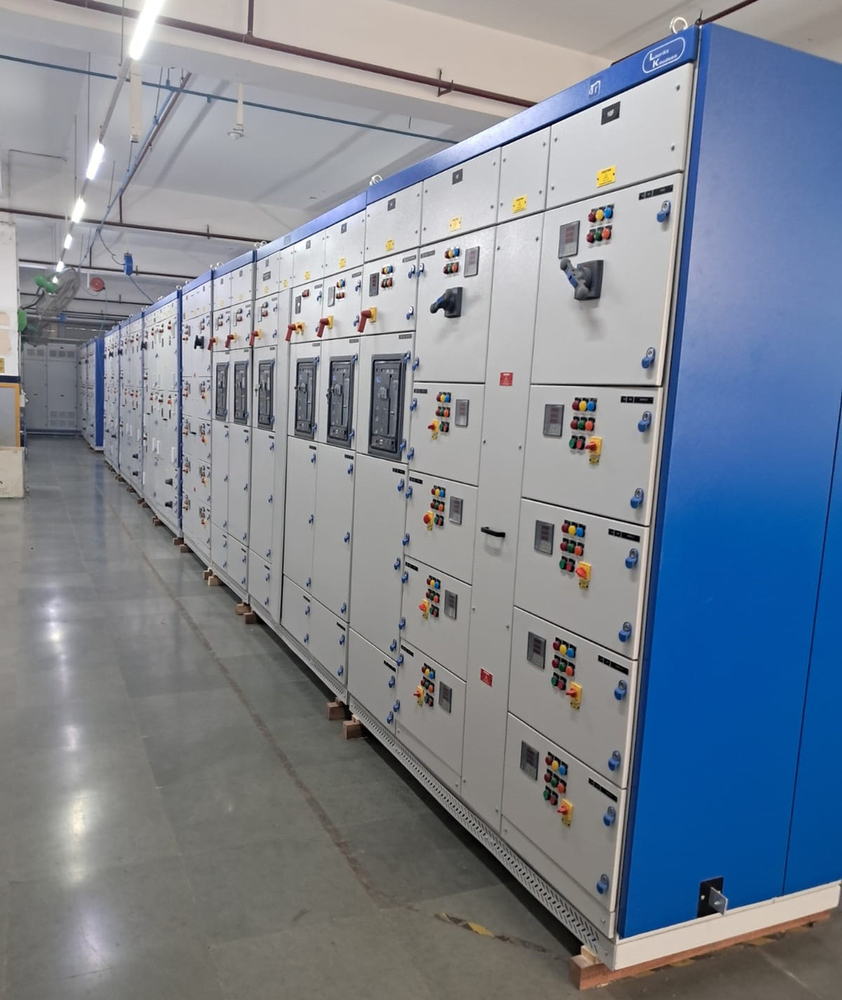

PCC Panel

• Application
• Industrial Power Distribution and Control

• Base Material
• Other, CRCA Steel

• Cabinet Material
• Powder Coated Steel

• Components
• MCCBs, ACBs, Contactors, Meters, Relays, Indicating Lamps, CTs, PTs

• Connectivity Type
• Modbus, Ethernet (Optional)

• Control System
• Manual or PLC Based

• Cooling System
• Natural Air / Forced Air (Optional)

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• 200 A - 6300 A

• Dimension (L*W*H)
• Customized as per Requirement

• Display Type
• Other, Analog / Digital Meters

• Features
• Compartmentalized construction, Adjustable incoming/outgoing sections, Cable alley, Safety interlocks, Earthing provision

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54 / IP55

• Material
• Other, CRCA Sheet Metal

• Maximum Output Current
• 6300 A

• Operating Voltage
• 415 V AC

• Panel Type
• Floor Mount, Compartmentalized

• Product Type
• Other, Power Control Center (PCC) Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54 / IP55

• Rated Current
• 200 A - 6300 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Siemens Grey (RAL 7032)

• Surface Finish
• Powder Coated

• Thickness
• Panel body: 2 mm, Door: 2.5 mm

• Way
• Multiple Ways (Customizable)

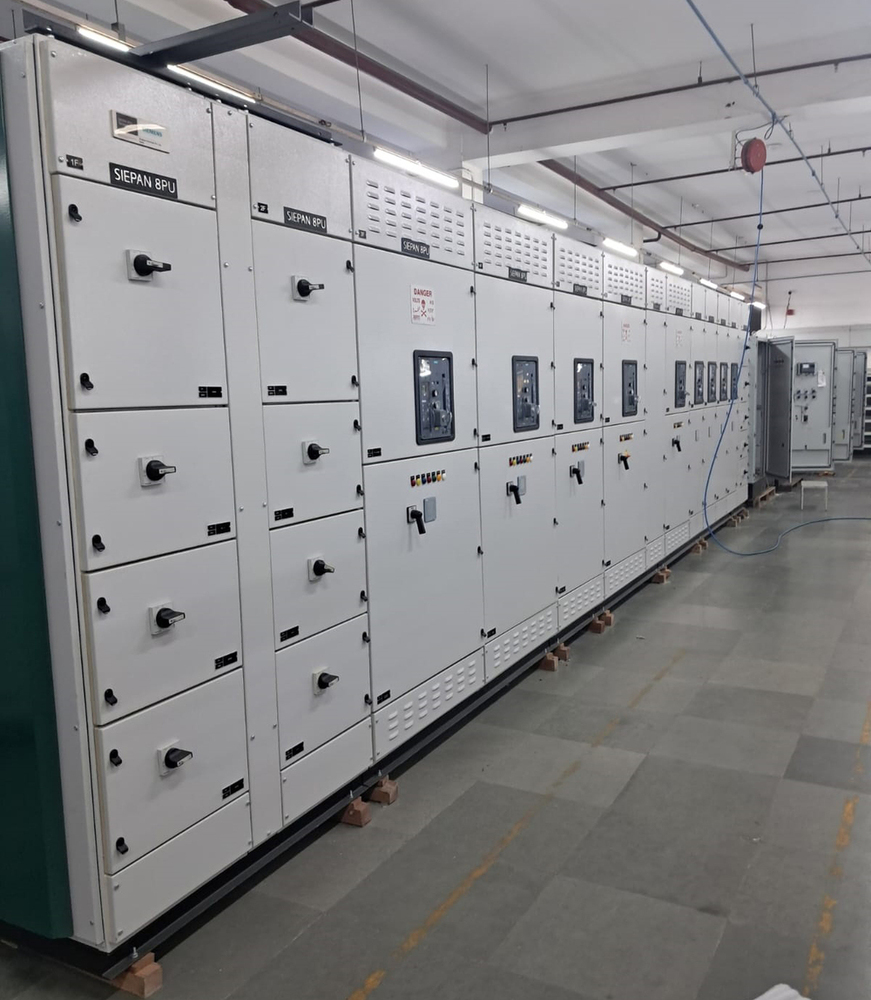

• Application
• Industrial Power Distribution

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Busbar, Meter, Indicator Lamps

• Connectivity Type
• Hard Wired

• Control System
• Manual

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Mild Steel Sheet

• Current Rating
• 100A

• Dimension (L*W*H)
• 1200mm x 900mm x 400mm

• Display Type
• Analog

• Features
• Earth Busbar, Cable Gland Plate, Lockable Door

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 100A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Power Control Center Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• 100A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• 3 Way

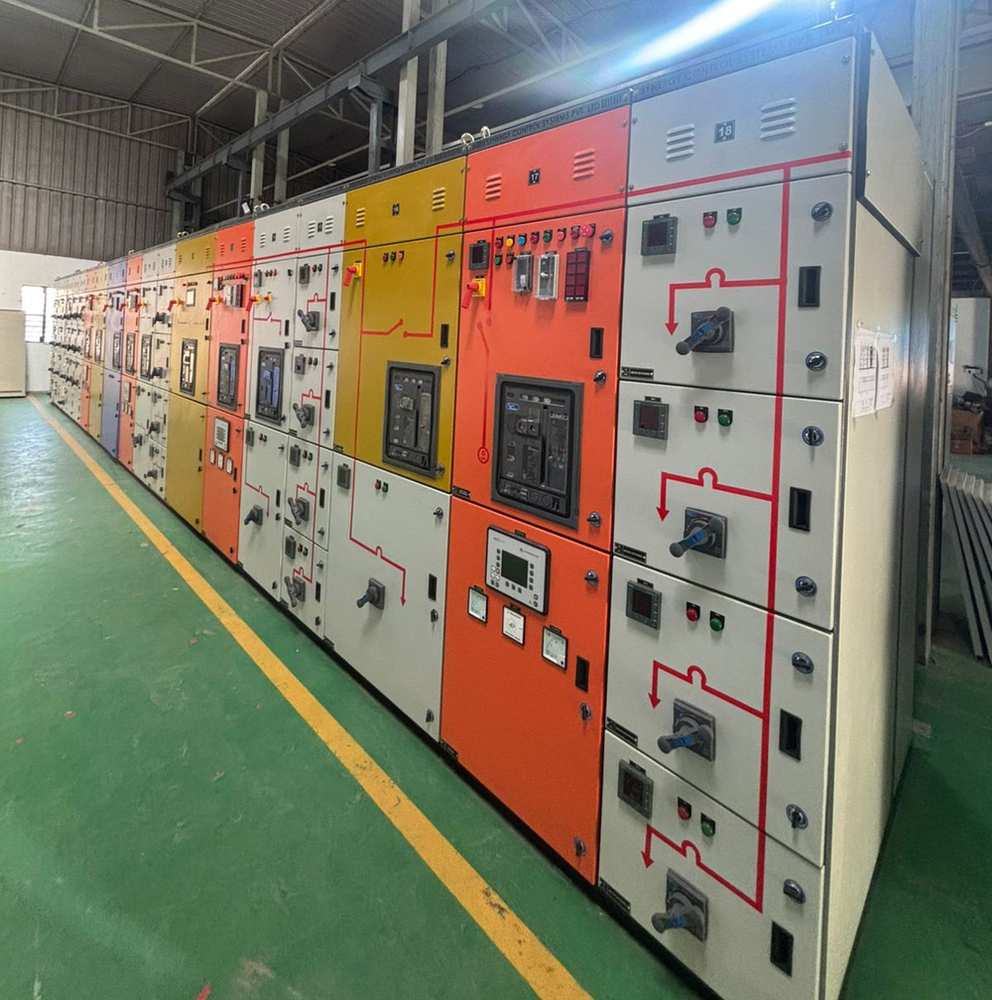

• Application
• Industrial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• Air Circuit Breaker, MCCBs, Indicators, CTs, PTs, Control Relays

• Connectivity Type
• Terminal Block

• Control System
• Manual and Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• 1000A

• Dimension (L*W*H)
• 1800 x 1200 x 600 mm

• Display Type
• Other, Analog Meter

• Features
• Robust Construction, High Breaking Capacity, Modular Design, Easy Maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 1000A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Power Control Center Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42

• Rated Current
• 1000A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439-1/2

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• 3 Way

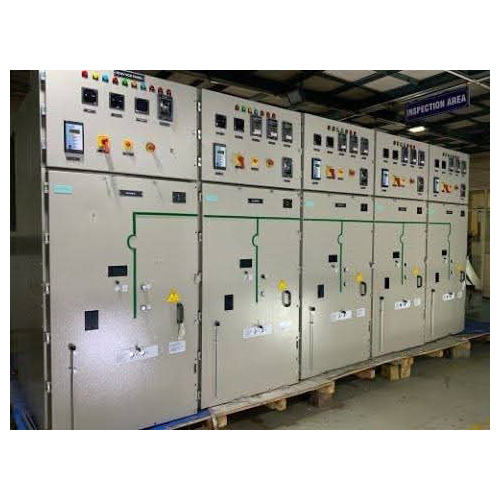

• Application
• Power Distribution & Control

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Sheet Metal - CRCA

• Components
• VCB, Protection Relays, CT, PT, Metering Module

• Connectivity Type
• Wired

• Control System
• Automatic/Manual

• Cooling System
• Natural Air / Forced Air

• Cover Material
• Other, CRCA Sheet

• Current Rating
• 1250 A

• Dimension (L*W*H)
• Customized

• Display Type
• Other, Analog/Digital

• Features
• Arc Fault Protection, Alarm System, Remote Monitoring Option

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, CRCA Steel

• Maximum Output Current
• 1250 A

• Operating Voltage
• 33,000 V

• Panel Type
• Indoor/Outdoor

• Product Type
• Other, Power Control Center Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 1250 A

• Rated Insulation Voltage
• 36 kV

• Rated Operation Voltage
• 33 kV

• Rated Voltage
• 33 kV

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Siemens Grey / RAL 7032

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multiple
