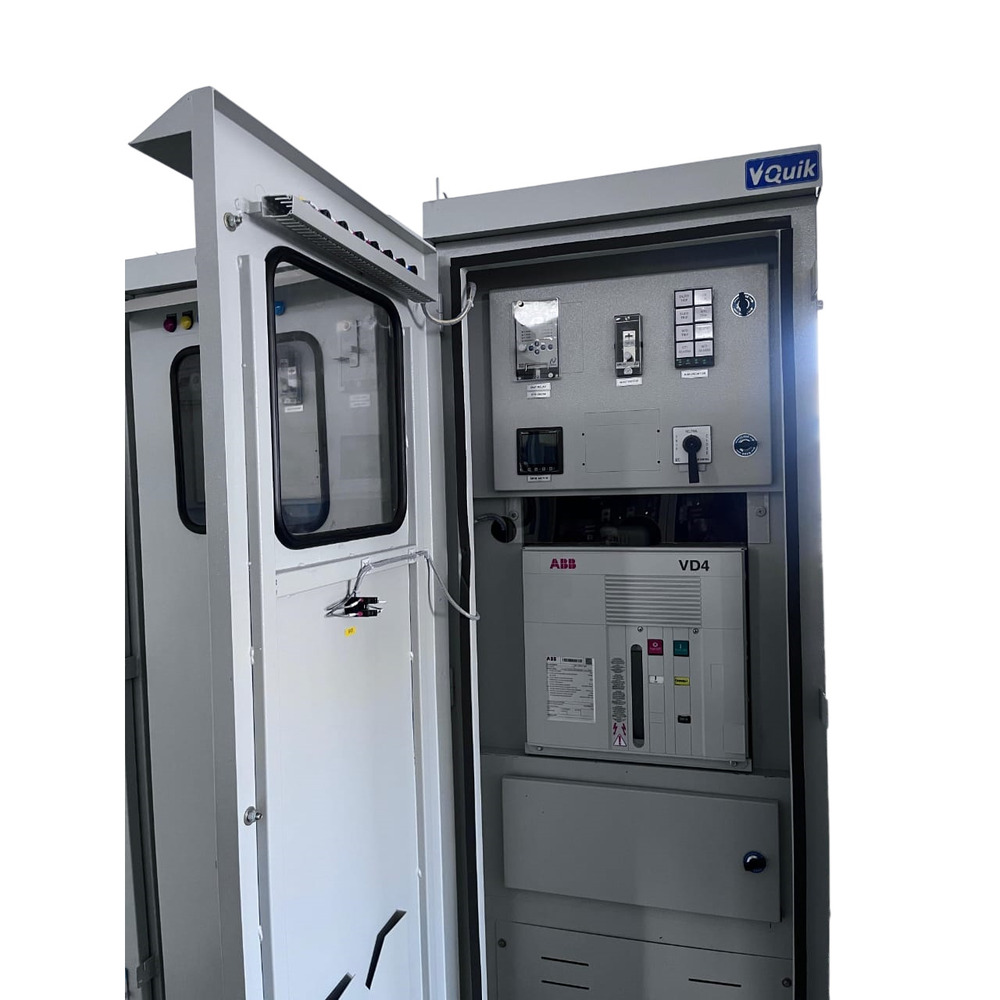

ABB VQuik Medium Voltage Switchgear Panel

Get a Price/Quote

Product Details:

Components Vacuum Circuit Breaker, CTs, PTs, Relays, Busbars
Panel Type Metal Clad
Connectivity Type Wired, SCADA compatible
Operating Voltage 3.3 kV to 12 kV
Rated Operation Voltage 12 kV
Rated Insulation Voltage 12 kV
Protection Class Class I
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ABB VQuik Medium Voltage Switchgear Panel Price And Quantity

Minimum Order Quantity 1 Piece

Interlock Safety System Provision for key interlocks and electrical mechanical interlocks
Short Circuit Withstand Up to 25 kA, 3 Sec
Panel Configurations Feeder, Transformer, Incoming/Outgoing Panel
Relay Type Numerical/Microprocessor based for advanced protection
Busbar Material Electrolytic Copper
Service Life 20 Years (Approximate)
Earthing System Solidly Earthed/Resistance Earthed
Environmental Conditions -10C to +40C, up to 95% RH
Installation Type Indoor Floor Mounted
Cable Entry Bottom/Top Entry

ABB VQuik Medium Voltage Switchgear Panel Product Specifications

Panel Type Metal Clad
Components Vacuum Circuit Breaker, CTs, PTs, Relays, Busbars
Display Type Analog/LED Indicators
IP Rating IP4X / IP5X
Product Type Medium Voltage Switchgear Panel
Frequency (MHz) 50 Hz
Connectivity Type Wired, SCADA compatible
Rated Operation Voltage 12 kV
Rated Insulation Voltage 12 kV
Protection Class Class I
Material High-grade steel sheet
Operating Voltage 3.3 kV to 12 kV
Surface Color Light Grey (RAL 7035)
Thickness 1.6 - 2.5 mm
Rated Voltage 12 kV
Way Up to 12 Way
Protection Level Internal Arc Classified
Cabinet Material Sheet Steel
Base Material Galvanized Steel
Rated Current 630 A / 1250 A
Control System Electromechanical or Microprocessor based
Dimension (L*W*H) 800 x 1000 x 2200 mm
Maximum Output Current up to 1250 A
Current Rating 630 A / 1250 A
Cooling System Natural Air Cooling
Features Modular design, Withdrawable VCB, Safety interlocks, Arc Proof, Easy maintenance
Surface Finish Powder Coated
Standard IEC 62271, IS 3427
Cover Material Steel
Application Power Distribution, Industrial and Commercial Plants, Substations

Interlock Safety System Provision for key interlocks and electrical mechanical interlocks
Short Circuit Withstand Up to 25 kA, 3 Sec
Panel Configurations Feeder, Transformer, Incoming/Outgoing Panel
Relay Type Numerical/Microprocessor based for advanced protection
Busbar Material Electrolytic Copper
Service Life 20 Years (Approximate)
Earthing System Solidly Earthed/Resistance Earthed
Environmental Conditions -10C to +40C, up to 95% RH
Installation Type Indoor Floor Mounted
Cable Entry Bottom/Top Entry

ABB VQuik Medium Voltage Switchgear Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India
