11KV HT Vacuum Circuit Breaker

Get a Price/Quote

Product Details:

Cabinet Material CRCA sheet
Thickness 3 mm (enclosure body)
Protection Class Class F
Control System Microprocessor/relay based
Components Vacuum Interrupters, CTs, PTs, Relays
Connectivity Type Bus bar connection
Rated Insulation Voltage 12 kV
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

11KV HT Vacuum Circuit Breaker Price And Quantity

Minimum Order Quantity 1 Piece

Rated Short Time Withstand Current 26.3 kA for 3 sec
Trip Coil Voltage 110/220 V AC/DC
Operating Mechanism Spring-charged, Trip-free
Environmental Category Indoor/outdoor use
Standards Conformity IS/IEC standards
Service Condition -10C to +55C, relative humidity up to 95%
Mechanical Endurance 10,000 operations
Making Capacity 65 kA peak
Interlock Door and racking interlock
Installation Type Floor mounted
Breaking Capacity 26.3 kA / 20 kA
Auxiliary Voltage 110/220 V AC/DC

11KV HT Vacuum Circuit Breaker Product Specifications

Rated Current 630/1250 A
Maximum Output Current 1250 A
Rated Voltage 11 kV
Protection Level Medium voltage protection
Frequency (MHz) 50 Hz
Base Material Mild Steel (MS)
Cooling System Air cooled
Display Type Analog/digital meters
Current Rating 630/1250 A
Standard IS 13118 / IEC 62271-100
Operating Voltage 11,000 V
Way 3 phase
Cover Material Powder coated steel
Features Compact design, Draw-out type, Manual/Motorized operation, Safety interlocks
Components Vacuum Interrupters, CTs, PTs, Relays
IP Rating IP4X
Dimension (L*W*H) 900 mm x 1100 mm x 2200 mm
Control System Microprocessor/relay based
Product Type HT Vacuum Circuit Breaker
Thickness 3 mm (enclosure body)
Cabinet Material CRCA sheet
Protection Class Class F
Application Medium voltage power distribution
Surface Color Grey
Panel Type Indoor/outdoor type
Rated Operation Voltage 11 kV
Material Metal clad
Surface Finish Epoxy powder coated
Rated Insulation Voltage 12 kV
Connectivity Type Bus bar connection

Rated Short Time Withstand Current 26.3 kA for 3 sec
Trip Coil Voltage 110/220 V AC/DC
Operating Mechanism Spring-charged, Trip-free
Environmental Category Indoor/outdoor use
Standards Conformity IS/IEC standards
Service Condition -10C to +55C, relative humidity up to 95%
Mechanical Endurance 10,000 operations
Making Capacity 65 kA peak
Interlock Door and racking interlock
Installation Type Floor mounted
Breaking Capacity 26.3 kA / 20 kA
Auxiliary Voltage 110/220 V AC/DC

11KV HT Vacuum Circuit Breaker Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'VCB Panel' category

VD4 Medium Voltage Vacuum Circuit Breaker Minimum Order Quantity : 1 Protection Class : Class I Cabinet Material : Powder Coated Steel Thickness : 3 mm (panel) Product Type : Other, Vacuum Circuit Breaker Control System : Manual/Automatic Dimension (L*W*H) : 750 x 1200 x 2300 mm Components : Vacuum Interrupter, CT, PT, Control Wiring IP Rating : Other, IP4X Connectivity Type : Terminal Block Rated Insulation Voltage : 38 kV Surface Finish : Powder Coated Material : Mild Steel Rated Operation Voltage : 33 kV Panel Type : Indoor Application : Medium Voltage Power Distribution Surface Color : Other, Grey Cooling System : Air Cooled Base Material : Other, Mild Steel Sheet Frequency (MHz) : 50 Hz Rated Voltage : 33 kV Protection Level : Other, High Voltage Maximum Output Current : 2500 A Rated Current : 2500 A Features : High Breaking Capacity, Compact Design, Maintenance Free Cover Material : Mild Steel Way : 3 Way Standard : IEC 62271100 Operating Voltage : 33 kV Current Rating : 2500 A Display Type : Other, Analog Meter

Send Inquiry

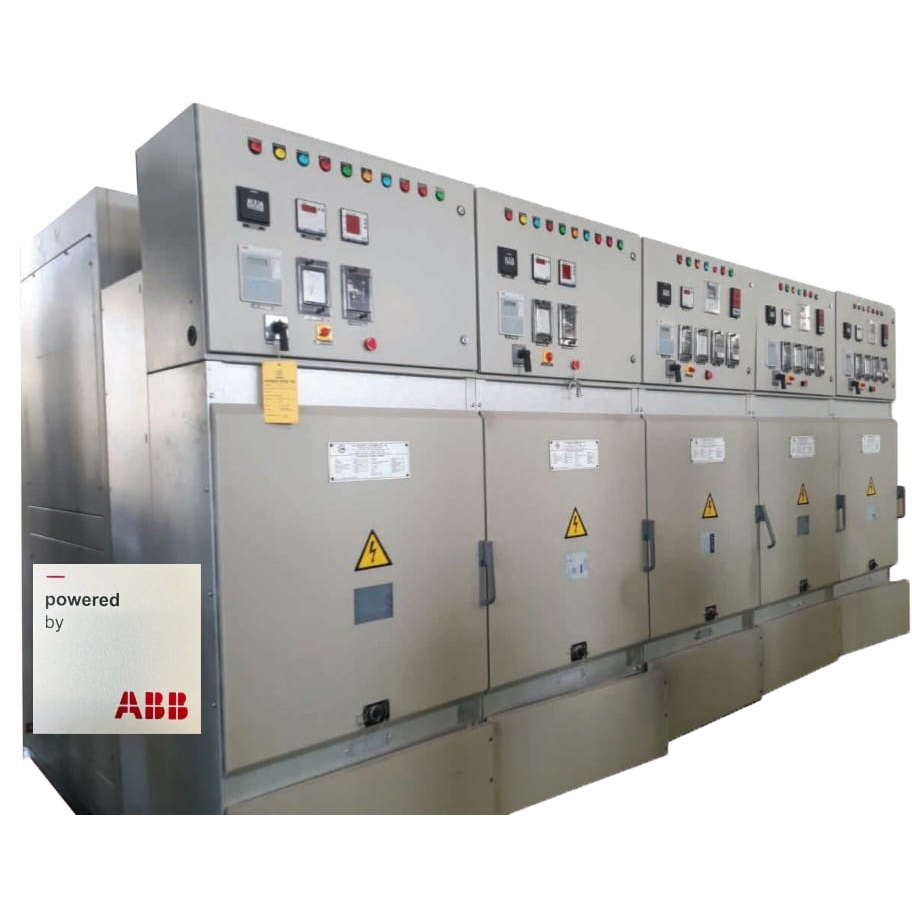

ABB Medium Voltage Vacuum Circuit Breaker Minimum Order Quantity : 1 Protection Class : Class H Cabinet Material : HighGrade Sheet Steel Thickness : 3 mm Product Type : Other, Medium Voltage Vacuum Circuit Breaker Control System : Manual & Motorized Mechanisms Dimension (L*W*H) : 580 mm x 800 mm x 1450 mm Components : Vacuum Interrupter, Spring Mechanism, Auxiliary Contacts IP Rating : Other, IP4X Connectivity Type : Copper Busbar Connections Rated Insulation Voltage : 28 kV Surface Finish : Powder Coated Material : Other, Vacuum Interrupter, Epoxy Resin, Copper Rated Operation Voltage : 12 kV Panel Type : Metal Clad Application : Distribution & Protection of Electrical Networks Surface Color : Other, Grey Cooling System : Air Cooled Base Material : Other, Sheet Metal Frequency (MHz) : 50 Hz Rated Voltage : 12 kV Protection Level : Other, IP4X Maximum Output Current : 1250 A Rated Current : 1250 A Features : Maintenance Free, Long Service Life, High Short Circuit Withstand Cover Material : Other, Epoxy Resin Way : Three Pole Standard : IEC 62271100, IS 13118 Operating Voltage : 12 kV Current Rating : 1250 A Display Type : Other, Mechanical Indication Window
