Crompton Greaves Outdoor Vacuum Circuit Breaker

Get a Price/Quote

Product Details:

Components Vacuum Interrupter, CTs, PTs, Relays
Rated Current 1250 A
Rated Insulation Voltage 28 kV (Power Frequency withstand)
Way 3 Phase
Panel Type Floor Mounted
Cabinet Material Sheet Steel
Base Material Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Crompton Greaves Outdoor Vacuum Circuit Breaker Price And Quantity

Minimum Order Quantity 1 Piece

Ambient Temperature Range -10C to +55C
Creepage Distance 320 mm
Phase Three phase
Operating Mechanism Spring Charged
Rated Short Time Withstand Current 26.3 kA for 3s
Interlocking Mechanical & Electrical
Relative Humidity Up to 100% (Condensing)
Auxiliary Voltage 110/220V AC/DC
Rated Breaking Capacity 26.3 kA
Rated Peak Withstand Current 66 kA
Mechanical Endurance > 10,000 operations
Mounting Type Outdoor Pole Mounted or Platform Mounted
Making Capacity 66 kA peak

Crompton Greaves Outdoor Vacuum Circuit Breaker Product Specifications

Components Vacuum Interrupter, CTs, PTs, Relays
Rated Current 1250 A
Standard IS/IEC 62271-100
Rated Insulation Voltage 28 kV (Power Frequency withstand)
IP Rating IP55
Way 3 Phase
Base Material Steel
Panel Type Floor Mounted
Maximum Output Current 1250 A
Surface Finish Powder Coated
Cabinet Material Sheet Steel
Control System Electro-Mechanical
Application Outdoor Electrical Distribution
Current Rating 1250 A
Dimension (L*W*H) 1380 mm x 1100 mm x 2200 mm
Display Type Analog & LED Indicators
Surface Color Grey
Protection Class Class II
Connectivity Type Hardwired/Terminal Connections
Operating Voltage 12 kV
Material Vacuum Interrupter, Epoxy Resin, Sheet Metal, Copper, Silver-Plated Contacts
Cover Material Epoxy Coated Steel
Features Arc Quenching Vacuum Interrupter, Maintenance-Free, Compact Design
Thickness 3 mm enclosure
Cooling System Natural Air Cooled
Rated Operation Voltage 12 kV
Product Type Outdoor Vacuum Circuit Breaker
Protection Level IP55
Rated Voltage 12 kV
Frequency (MHz) 50 Hz

Ambient Temperature Range -10C to +55C
Creepage Distance 320 mm
Phase Three phase
Operating Mechanism Spring Charged
Rated Short Time Withstand Current 26.3 kA for 3s
Interlocking Mechanical & Electrical
Relative Humidity Up to 100% (Condensing)
Auxiliary Voltage 110/220V AC/DC
Rated Breaking Capacity 26.3 kA
Rated Peak Withstand Current 66 kA
Mechanical Endurance > 10,000 operations
Mounting Type Outdoor Pole Mounted or Platform Mounted
Making Capacity 66 kA peak

Crompton Greaves Outdoor Vacuum Circuit Breaker Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'VCB Panel' category

ABB 11kV Vacuum Circuit Breaker Panel Minimum Order Quantity : 1 Cabinet Material : Stainless Steel Maximum Output Current : 1000A Surface Finish : Powder Coated Panel Type : Indoor Base Material : Other, Mild Steel base Way : 3Way Current Rating : 1000A Application : Industrial/Power Utility Control System : Semi Automatic Standard : IEC 62271200 Rated Current : 1000A Components : VCB, CT, PT, Busbar Rated Insulation Voltage : 12 kV IP Rating : Other, IP4X Cooling System : Natural Air Cooling Rated Operation Voltage : 11 kV Features : Arc Proof, Interlocked, Maintenance Free Cover Material : Stainless Steel Thickness : 2 mm Material : Other, Stainless Steel (SS) Operating Voltage : 11 kV Frequency (MHz) : 50/60 Hz Protection Level : Other, High Rated Voltage : 11 kV Product Type : Other, Vacuum Circuit Breaker Panel Protection Class : Class I Dimension (L*W*H) : 2200x800x1600 mm Surface Color : Other, Light Grey Connectivity Type : Hardwired Display Type : Other, Analog meters

Send Inquiry

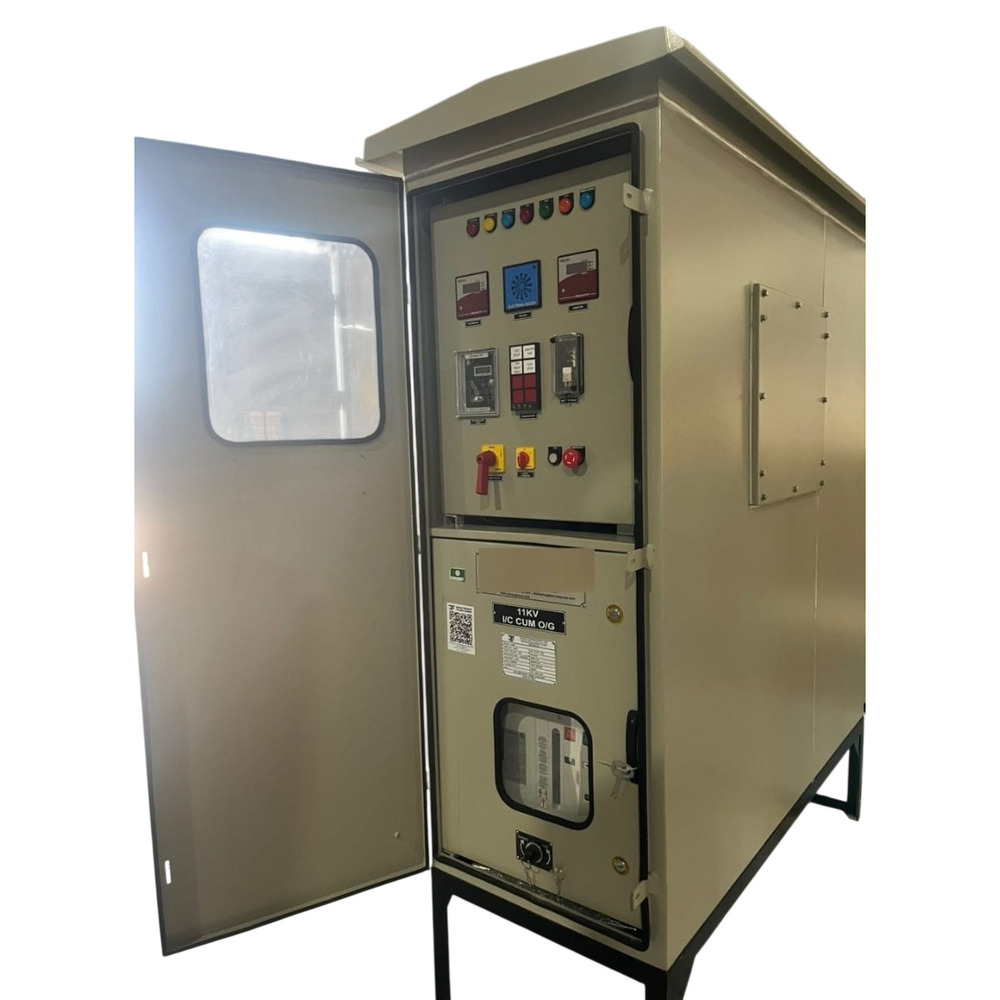

11KV Electric Vacuum Circuit Breaker Minimum Order Quantity : 1 Cabinet Material : CRCA Steel Maximum Output Current : 1250 A Surface Finish : Powder Coated Panel Type : Indoor/Outdoor Base Material : Other, Metal Sheet Way : Three Phase Current Rating : 630 A / 1250 A Application : Medium Voltage Distribution Control System : Manual & Motor Operated Standard : IEC 62271100 Rated Current : 630 A / 1250 A Components : Vacuum Interrupter, Spring Mechanism, CT, PT Rated Insulation Voltage : 12 kV IP Rating : Other, IP4X Cooling System : Air Cooled Rated Operation Voltage : 11 kV Features : Arc Quenching, Maintenance Free, Compact Design, High Mechanical Strength Cover Material : Other, Epoxy Resin Thickness : 3 mm Material : Other, Epoxy Resin, Metal Operating Voltage : 11,000 V Frequency (MHz) : 50 Hz Protection Level : Other, High Rated Voltage : 11 kV Product Type : Other, Vacuum Circuit Breaker Protection Class : Class I Dimension (L*W*H) : 900 x 1000 x 2100 mm Surface Color : Other, Grey Connectivity Type : Cable/ Busbar Display Type : Other, Analog/LED Indicator
