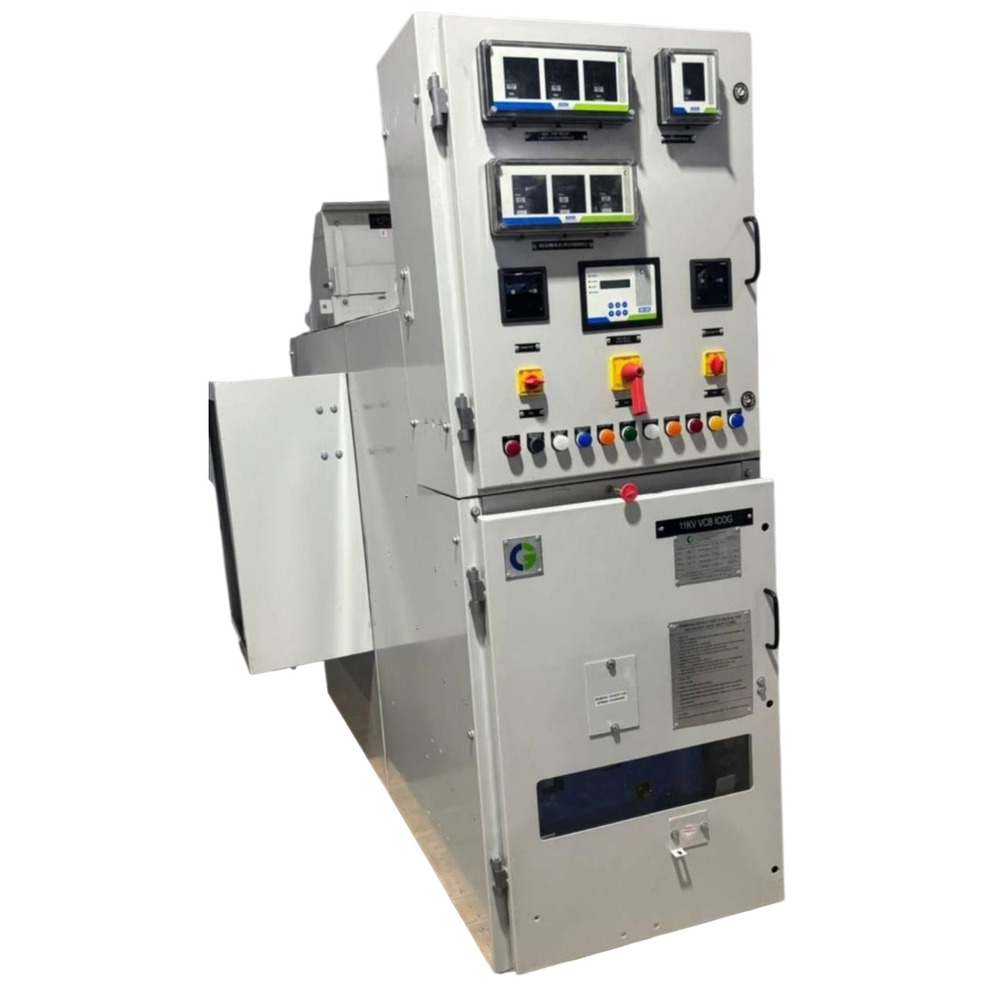

11kV Vacuum Circuit Breaker

Get a Price/Quote

Product Details:

Cooling System Air Natural Cooled
Cover Material Powder Coated Sheet Steel
Way 3 Phase
Operating Voltage 11kV AC
Rated Insulation Voltage 12kV
Base Material CRCA Sheet Steel
Panel Type Indoor Metal-Clad
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

11kV Vacuum Circuit Breaker Price And Quantity

Minimum Order Quantity 1 Piece

Breaking Capacity 26.3kA / 31.5kA
Rated Short Time Withstand Current 25kA for 3 sec
Altitude Up to 1000m above sea level
Monitoring Trip circuit supervision
Humidity Up to 95% RH (non-condensing)
Interlocking Door & Circuit Breaker mechanical/electrical interlock
Tripping Coil Voltage 110/220V AC/DC
Weight Approx. 350 kg
Operating Mechanism Spring charged
Mechanical Endurance Over 10,000 operations
Environment Temperature Range -10C to +50C
Installation Type Floor mounted
Busbar Material Electrolytic copper
Making Capacity 63kA (peak)
Auxiliary Contacts 6NO + 6NC

11kV Vacuum Circuit Breaker Product Specifications

Product Type Vacuum Circuit Breaker
Current Rating 630A / 1250A
Components Vacuum Interrupter, CT, PT, Relay, Busbars, ON/OFF/Trip Mechanism
Surface Color Gray
Thickness 3 mm enclosure
Rated Current 630A / 1250A
Features High reliability, Low maintenance, Arc interruption in vacuum
Cabinet Material CRCA Sheet Steel
Rated Voltage 11kV
Operating Voltage 11kV AC
Way 3 Phase
Surface Finish Powder Coated
Rated Insulation Voltage 12kV
Display Type Mechanical Mimic Diagram
Cover Material Powder Coated Sheet Steel
Cooling System Air Natural Cooled
Dimension (L*W*H) Approx. 800 mm x 1500 mm x 1200 mm
Protection Class Class I
Panel Type Indoor Metal-Clad
Base Material CRCA Sheet Steel
Control System Electro-mechanical
Connectivity Type Wired
Material Metal-clad, Vacuum interlock
Maximum Output Current Up to 1250A
Frequency (MHz) 50 Hz
Protection Level High
Standard IS 13118 / IEC 62271-100
Application Medium Voltage Distribution
Rated Operation Voltage 11kV

Breaking Capacity 26.3kA / 31.5kA
Rated Short Time Withstand Current 25kA for 3 sec
Altitude Up to 1000m above sea level
Monitoring Trip circuit supervision
Humidity Up to 95% RH (non-condensing)
Interlocking Door & Circuit Breaker mechanical/electrical interlock
Tripping Coil Voltage 110/220V AC/DC
Weight Approx. 350 kg
Operating Mechanism Spring charged
Mechanical Endurance Over 10,000 operations
Environment Temperature Range -10C to +50C
Installation Type Floor mounted
Busbar Material Electrolytic copper
Making Capacity 63kA (peak)
Auxiliary Contacts 6NO + 6NC

11kV Vacuum Circuit Breaker Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India
